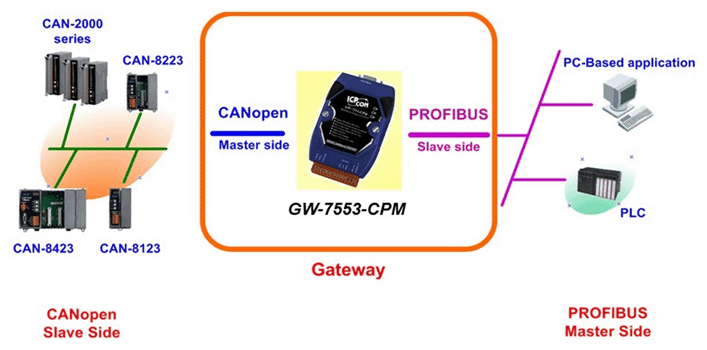

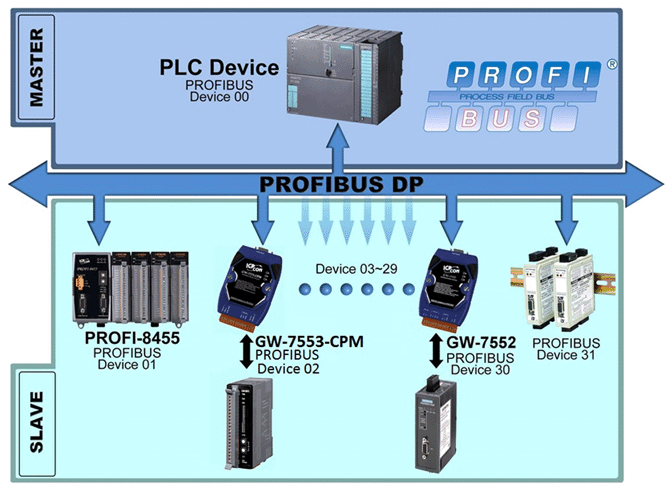

The GW-7553-CPM Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the CANopen slave devices. We also provide the utility software for users to configure the GW-7553-CPM. By using this module, users can put their CANopen devices into PROFIBUS network very easily.





Features:

• Protocol & Hierarchy: DP-V0 Slave
• Detect transmission rate (9.6 ~ 12000 kbps) automatically
• 240 bytes max input data length
• 240 bytes max output data length
• Follow the CiA CANopen Standard DS-301 v4.02
• Support Node Guarding and Heartbeat Consumer protocol
• Support 110 CANopen SDO/PDO commands
• Support 4 data types: Boolean、Byte、Word、4-byte
• 3000 VDC isolation protection on PROFIBUS side
• 4 kV ESD Protection

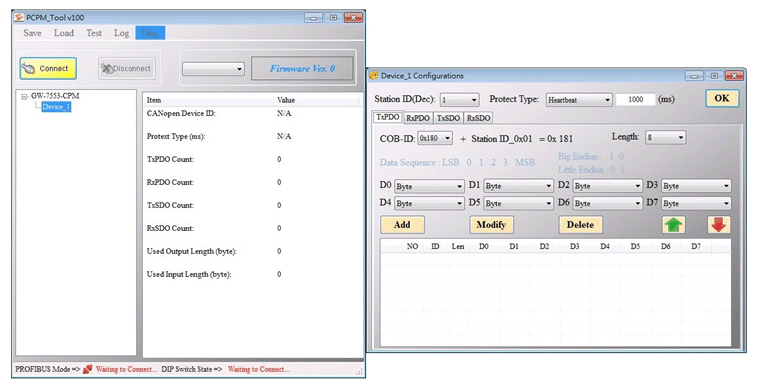

Utility:

• Add/remove CANopen slaves via RS-232
• Show diagnostic messages
• Provide test function for CANopen slave devices
