Introduction:

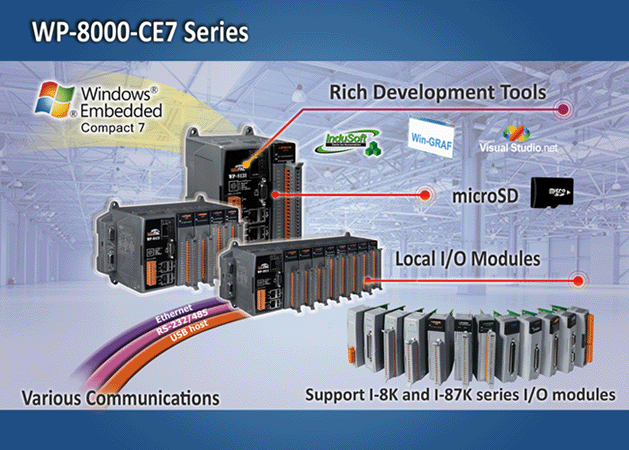

The Win-GRAF WinPAC-8000-CE7 Series (WP-8128-CE7/8428-CE7/8828-CE7) is a new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-8000-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU (running Windows CE 7.0 operating system), a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.

Local I/O and Communication Expansion Modules
There are 1, 4, 8 slot options provided to expand the local I/O. And the I/O modules can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.
The I/O slots support integration with high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules. All kinds of module are provided for AI, AO, DI, AO, counter input, frequency input, PWM output, motion control, memory, communication, etc.
I-8K & I-87K: https://www.icpdas.com/en/product/guide+Remote__I_O__Module__and__Unit+PAC__%EF%BC%86amp;__Local__I_O__Modules+I-8K_I-87K__Series__(High__Profile)

Multi-Communication Interface
There are several communication interfaces can be used to expand I/O and connect to external devices:
1. Ethernet
2. RS-232/485



Features:

• Cortex-A8 1.0 GHz CPU
• CE7 (Windows Embedded Compact 7)
• Hard Real-Time Capability
• Memory Size:
  • SDRAM (512 MB)
  • Flash (256 MB)
  • SD card (support up to 32 GB)
• VGA Port x 1, USB 2.0 port x 2, Series port (RS-232/RS-485) x 4
• 64-bit Hardware Serial Number
• Dual Watchdog Timers
• Dual Ethernet Ports (10/100M/1G)
• Redundant Power Input
• Ultra-Rugged Construction and Reliable Design
• Operating Temperature: -25 to +75 °C

More information:
https://www.icpdas.com/en/product/WP-8121-CE7
https://www.icpdas.com/en/product/WP-8421-CE7
https://www.icpdas.com/en/product/WP-8821-CE7
