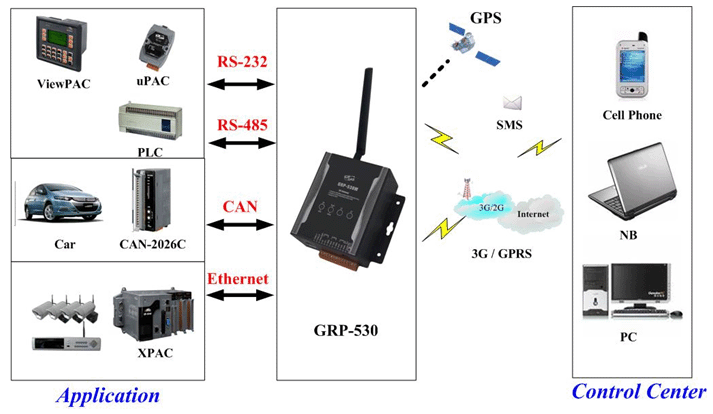

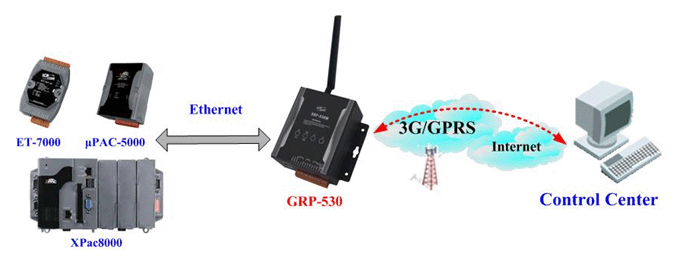

The GRP-530 design by ICP DAS is a 3G gateway for Ethernet or serial port. With the GPS model (optional), the GRP-530 can use as a GPS tracking system. In M2M application fields, use it to transfer the data from remote I/O, Modbus data or video of the camera via 3G/2G. With its high-performance CPU, the GRP-530 Series can handle a large amount of data and are suitable for harsh industrial environments. The GRP-530 Series equipped with the 3G module, Ethernet interface, CAN Bus, and optional GPS module.




Features:

• Support WCDMA 850/900/1900/2100 MHz and GSM 850 / 900 / 1800 / 1900 MHz.
• 10/100/1000 Base-TX compatible Ethernet controller
• COM port: COM1 (3-wire RS232), COM2 (3-wire RS232), COM3 (RS-485)
• Support CAN
• GPS : 32 channels with All-In-View tracking (option)
• Support Micro SD card.
• Provide 3G Router function.
• Support port mapping (port forward) function.
• Serial Port to 3G Gateway
• High reliability in harsh environments
• DIN-Rail mountable

For more information, please visit the following website: https://www.icpdas.com/en/product/GRP-530M
