The USB-2051-32 provided by ICP DAS is a new USB module with 32 digital input channels. The USB-2051-32 is similar to USB-2051 which can be used for industrial control and testing applications, such as factory automation or control of embedded machine. By using USB-2051-32, the users can control their equipment with ease.

The USB-2051-32 provides 32 digital input channels (more than USB-2051(16 channels)), are also able to be used as 32-bit counters. In addition, the digital input channels can be selected as sink/source type or dry/wet contact via wire connections. It also features standard 4 kV ESD protection and 3000 VDC intra-module isolation. With the true Plug & Play capability, it doesn’t require to open up your computer chassis to install the boards; just plug in the module and get the data via USB-2051-32.

The USB I/O utility can help users to configure and test USB-2045-32 quickly and easily without programming. In addition, we also provide friendly API library, demos and various application development tools (VB/C++/C#.NET/VB.NET) for users to develop their own USB applications. Therefore, the USB-2045-32 is perfect for adding control capability to any USB capable computer.






Features:

• 32-channel digital input
• Select Dry/Wet contact via wiring
• 32-bit counters
• Wide operating temperature range: -25°C to +75°C
• 4kV ESD
• 3000 VDC Intra-Module isolation
• RoHS compliant
• USB 1.1/2.0 Full-Speed
• Plug-and-Play without driver
• Lockable USB cable
• Provide API library (VC/VB/BCB/.NET)
• Module supported for Win2000/XP and Win 7,8,10 (32/64 bit)

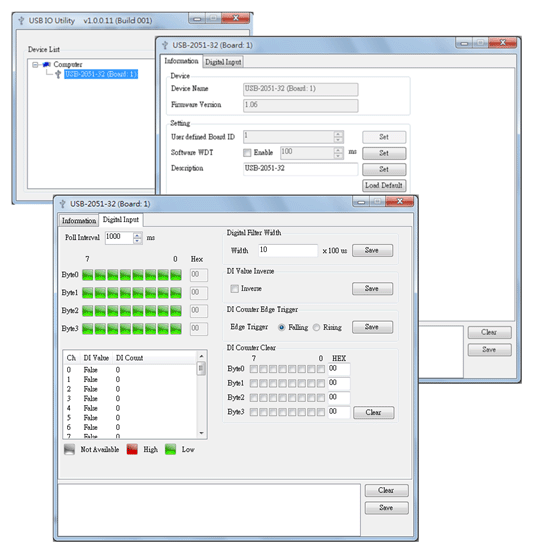

Utility Features:

• Automatically scan all ICP DAS USB I/O modules
• Easily and quickly configure and test USB I/O modules
• Completely and precisely log IO data for analysis

For more information, please visit the following website: https://www.icpdas.com/en/product/USB-2051-32
