Introduction:

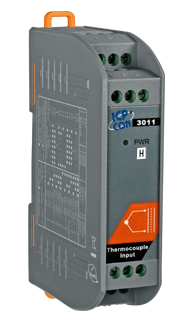

The SG-3011H is a thermocouple input signal conditioner. SG-3011H uses microprocessor-controlled high-resolution 24-bit dual-slope, integrating A/D converter to acquire thermocouple signal and cold junction compensation input. Temperature measurement is performed by using the thermocouple linearization and cold junction compensation function. Thermocouple types J, K, T, E, R, S, B, N, C, L, M, L2 (DIN43710) are supported, and a 2 kHz sampling rate is provided for thermocouple input. The power supply that drives the module’s input and output circuitry is internally isolated, enabling SG-3011H to offer true channel - to - channel isolation. It is easy to mount the SG-3011H on a standard DIN rail and can operate in environments with wide temperature range.



Features:

• High-Speed Sampling Rate: 2 kHz
• Configurable for a Wide Range of Thermocouple Types
• Adjustable CJC Offset
• Open Thermocouple Detection
• Three-way Isolation: 1000 VDC
• Operating Temperature Range: -25 to +75°C

More information https://www.icpdas.com/en/product/SG-3011H-G
