Introduction:

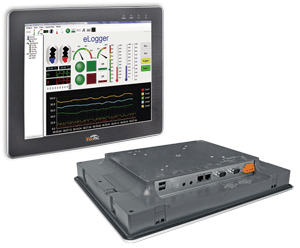

The iPPC-4701-WES7 is a WES7 based Panel PC, and it provides a perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Atom E3827 CPU, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232, RS-422 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded via a Compact Flash slot. The remote I/O expansion is available for connecting to our Ethernet I/O modules or RS-485 I/O modules. The iPPC-4701-WES7 is designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. It is also designed to operate over a wide -10°C to 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.



Multi-Communication Interface

There are several communication interfaces can be used to expand I/O and connect to external devices:
1. Ethernet
2. RS-232/485



Features:

• LCD Size: 10.4" with Touch Panel
• E3827 (1.75 GHz) CPU
• WES7 (Windows Embedded Standard 7)
• Support eLogger HMI (free)
• NEMA 4/IP65 Compliant Front Panel
• Ultra-Rugged Construction and Reliable Design
• Operating Temperature：-10 °C to +60 °C
