Introduction:

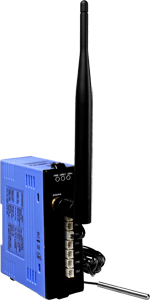

The ZT-2005-C8 is an 8-channel thermistor input module of ZigBee. It is based on the IEEE802.15.4 standard and it allows users to measure the temperature via a thermistor in a personal area ZigBee network. The typical transmission of ZT-2005-C8 is 700 meters (LOS, line of sight), with a transmission frequency range of between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings by using a combination of rotary and DIP switches. In addition, ZT-2005-C8 has 4 kV ESD protection and 1000 VDC intra-module isolation.



Features:

• ISM 2.4 GHz Operating Frequency
• Fully Compliant with IEEE802.15.4/ZigBee Specifications (ZigBee Pro/ZigBee 2007)
• Wireless Transmission Range up to 700 meters (Line of Sight)
• Supports ZigBee Repeater Function
• Supports DCON and Modbus RTU protocols
• 8-Channel Thermistor Input
• Resolution: 12 bits
• Accuracy: ±1°C
• DIN-Rail Mountable
• Operating Temperatures, -25 °C to +75 °C
