Introduction

XP-8X31-WES7 Series is a new generation Windows Embedded Standard based PACs developed by ICP DAS. It is equipped with a x86 CPU (1 GHz, dual-core), various connectivity (VGA, USB, Ethernet, RS-232/485) and 1/3/7 I/O slot(s) for high performance parallel I/O modules (high profile I-8K Series) and serial I/O modules (high profile I-87K series). The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded via a Compact Flash slot. XPAC is capable of running PC-based control software such as Visual Basic .NET, Visual C#,…. etc. It has all of the best features of both traditional PLCs and Windows capable PCs.



Local I/O and Communication Expansion Modules

There are 1, 3, 7 slot options provided to expand the local I/O. And the I/O modules can be parallel bus type (I-8K series) or serial bus type (I-87K series).
The I/O slots support parallel bus type (I-8K series) and serial bus type (I-87K series) I/O modules. These modules provides wide-range options for different I/O combination to implement all kinds of I/O functions such as: AI, AO, DI, AO, counter input, frequency input, PWM output, motion control, memory, communication, etc.
I-8K & I-87K:
https://www.icpdas.com/en/product/guide+Remote__I_O__Module__and__Unit+PAC__%EF%BC%86amp;__Local__I_O__Modules+I-8K_I-87K__Series__(High__Profile)



Multi-Communication Interface

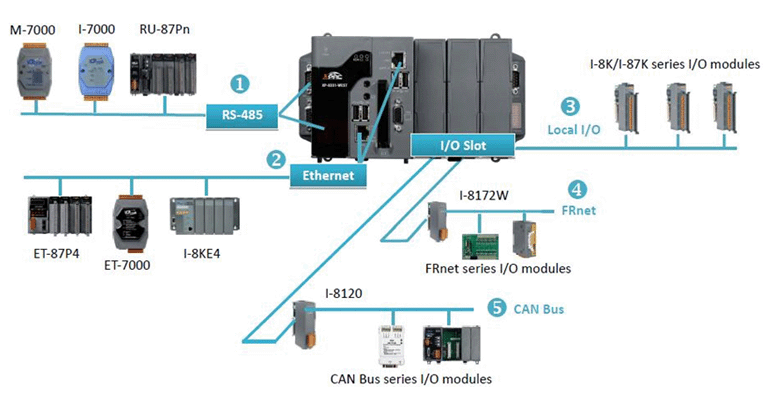

There are several communication interfaces can be used to expand I/O and connect to external devices:
1. Ethernet
2. RS-232/485




Features:

• Windows Embedded Standard 7
• x86 CPU, 1 GHz, dual-core
• Memory Size:
  • DDR3 SDRAM (2 GB), Built-in Flash Disk (32 GB)
  • EEPROM (16 KB), CF Card (8 GB)
  • Dual Battery Backup SRAM (512 KB)
• VGA Port x 1, USB 2.0 port x 2, Series port (RS-232/RS-485) x 4
• 64-bit Hardware Serial Number
• Dual Ethernet Ports (10/100M/1G)
• Audio with Microphone-In and Earphone-Out
• Redundant Power Input
• Support eLogger HMI
• Ultra-Rugged Construction and Reliable Design
• Operating Temperature: -25 to +75 °C

For more information about XP-8X31-WES7, please visit following links:
● XP-8X31-WES7 Datasheet: https://www.icpdas.com/web/product/download/pac/wes/xp-8x3x-wes7/document/data_sheet/xp-8000-wes7_data%20sheet_en.pdf
● XP-8X31-WES7 Web Page: https://www.icpdas.com/en/product/guide+PACs+Windows__PACs+XP-8000-WES7#301
● ICP DAS Webpage: https://www.icpdas.com/




Compared with the XP-8x41-Atom, the hardware size and the positions and numbers of the peripheral communication interface of the XP-8x31-WES7 are completely compatible with the XP-8x41-Atom, and the hardware can be directly upgraded. Hardware specifications include faster CPU, Gigabit Ethernet and larger RAM memory; the overall system performance is greatly improved than the previous generation.
