LX-8131、LX-8331、LX-8731 – Linux based PAC
New Products
2017-01-17
Introduction:
The LX-8x3x is a new generation Linux based PAC (Programmable Automation Controller) of ICP DAS. Each LX-8x3x is equipped with a x86 dual-core (1.0 GHz) CPU that runs Linux operating system, it also features a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/3/7 expansion I/O slots which can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.Local I/O and Communication Expansion Modules
There are 1, 3, 7 slot options provided to expand the local I/O. And the I/O modules can be parallel bus type (I-8K series) or serial bus type (I-87K series).The I/O slots support parallel bus type (I-8K series) and serial bus type (I-87K series) I/O modules. All kinds of module are provided for AI, AO, DI, AO, counter input, frequency input, PWM output, motion control, memory, communication, etc.
I-8K & I-87K:
https://www.icpdas.com/en/product/guide+Remote__I_O__Module__and__Unit+PAC__%EF%BC%86amp;__Local__I_O__Modules+I-8K_I-87K__Series__(High__Profile)

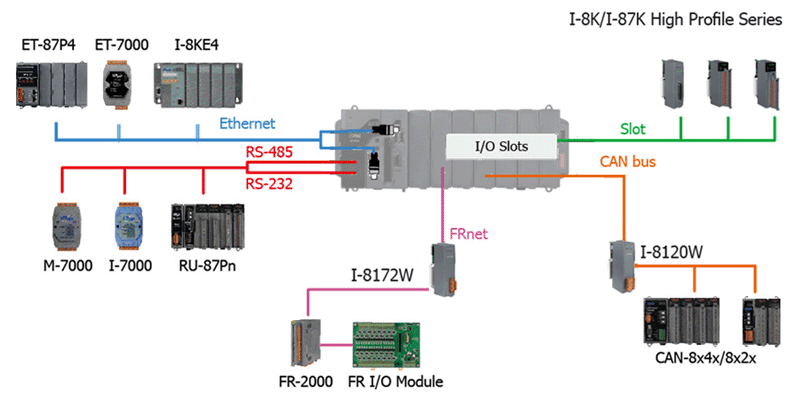

Multi-Communication Interface
There are several communication interfaces can be used to expand I/O and connect to external devices:1. Ethernet
2. RS-232/485
Features:
- x86 dual-core 1.0 GHz CPU
- Linux Kernel
- Memory Size:
- DDR3 (2 GB)
- mSATA SSD (32 GB)
- CF card (support up to 32 GB)
- VGA Port x 1, USB 2.0 port x 4, Serial port (RS-232/RS-485) x 4
- 64-bit Hardware Serial Number
- Dual Watchdog Timers
- Dual Ethernet Ports (10/100M/1G)
- Redundant Power Input
- Ultra-Rugged Construction and Reliable Design
- Operating Temperature: -25 ~ +75 °C
More information https://www.icpdas.com/en/product/guide+PACs+Linux__PACs+LX-8000#374
Instructions for upgrading from LP-8x8x/LP-8x8x-Atom to LX-8x3x
|
Specification Comparison
|
|||
| Specification | LP-8x8x | LP-8x8x-Atom (Phased-out) | LX-8x3x (New) |
|---|---|---|---|
| Linux Kernel | 2.6.x | 2.6.x | 3.2.x |
| CPU | AMD LX800 (500 MHz) | Atom Z520 (1.33 GHz) | x86 dual-core (1.0 GHz) |
| RAM size | 1 GB | 1 GB | 2 GB |
| ROM size | 4 GB | 32 GB | 32 GB |
| Ethernet | 10/100 Base-TX * 2 | 10/100 Base-TX * 2 | 10/100/1000 Base-TX * 2 |
| USB | USB1.1 * 2 | USB2.0 * 4 | USB2.0 * 4 |
| I/O Slots | 0/3/7 | 1/3/7 | 1/3/7 |
Compared with the LP-8x8x-Atom, the hardware size and the positions and numbers of the peripheral communication interface of the LP-8x8x-Atom are completely compatible with the LX-8x3x, and the hardware can be directly upgraded. Hardware specifications include faster CPU, Gigabit Ethernet and larger RAM memory; the overall system performance is greatly improved than the previous generation.
