CAN-2084C – 4/8 Counter/Frequency CANopen Slave Module

New Products 2019-05-23

Introduction:

CANopen is one kind of the network protocols based on the CAN bus and mainly applied in embedded networks of machine control, such as industrial machine automation, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control.

The CAN-2084C module follows the CiA -301 version 4.02, and has passed the validation of the CiA CANopen Conformance Test tool. You can use it with the standard CANopen master interface easily by applying the provided EDS file. The CAN-2084C module provides 4/8 channels DI as counters, the DI channels have 5 modes, 4 sets of Up/Down counter, 4 sets of Dir/Pulse counter, 4 sets of A/B phase counter, 8 sets of Up counter and 8 sets of Frequency detection.

ICP DAS also provides various interfaces of the CANopen masters, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site.

https://www.icpdas.com/en/product/guide+Industrial__Communication+Fieldbus__Communication+CANopen#568

Hardware Features::

4/8-channel digital counter
Support isolated and non-isolated input signals.
Support 8 Up Counter (Minimum Pulse Width=2 μs).
Support 8 Frequency (Minimum Pulse Width=2 μs).
Support 4 Up/Down Counter (Minimum Pulse Width=2 μs).
Support 4 Dir/Pulse Counter (Minimum Pulse Width=2 μs).
Support 4 A/B Phase Counter (Minimum Pulse Width=2 μs).
Support 1~32767 (us) digital filter.
Provides Jumper for 120 Ω terminator resistors.
Operating temperature -25 to +75 °C
Intra-module Isolation 3750 Vrms.
ESD Protection 4 kV Contact for each channel.
PWR, RUN, ERR LED indicator.
Input signal LED indicators, terminator resistors LED indicator.

CANopen Communication Specifications:

General Purpose CANopen slave I/O module.
CANopen Version: CiA 301 v4.02.
Supports standard 8 kinds of the CANopen transfer rate, 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps and 1000 kbps.
Supports maximum Node-ID up to 99.
Supports NMT, PDO, SDO, EMCY, SYNC, Guarding and Heartbeat protocols.
Passes the validation of CiA CANopen Conformance Test tool.
Provides default EDS File.

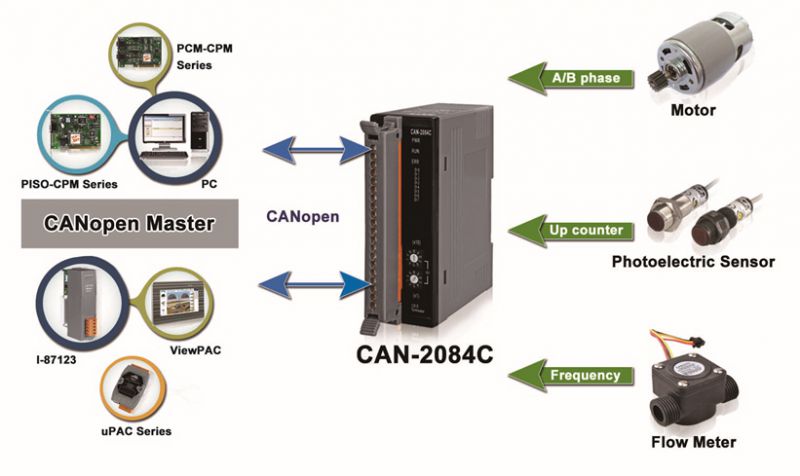

Application:

For more information, please refer to: https://www.icpdas.com/en/product/CAN-2084C
