Introduction

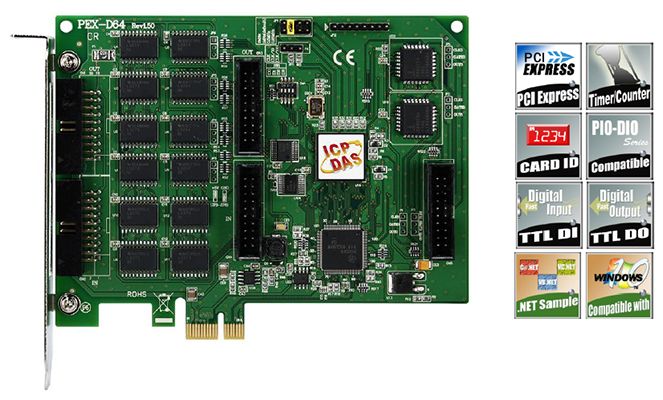

The PEX-D64 card is a new generation product provided by ICP DAS to meet RoHS compliance requirement and is completely compatible with the PIO-D64 series. Users can replace the PIO-D64 series by the PEX-D64 directly without software/driver modification.

The PEX-D64 card supports PCI Express bus. It provides 32-ch digital input and 32-ch digital output that consist of two 16-bit input ports and two 16-bit output ports. The PEX-D64 also offers 6-ch counter/timer with four-clock sources: 2 MHz, 1 MHz, 500 kHz and 250 kHz. The user can use the clock source from the soldering pad. Three of the 6-ch counter/timer channels are for general purposes such as frequency measurement, event counting and pulse generation; the other 3 channels are for interrupt function.

The PEX-D64 has a Card ID switch that users can recognize the board by the ID via software when using two or more PIO-D64 series cards in one computer.

These cards support a variety of OS versions, such as DOS, Linux and 32/64-bit Windows 10/8/7/2008/2003/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.




PEX-D64 V.S. PIO-D64U





Feature:
	Support the PCI Express bus
	Card ID function: Users can set Card ID to recognize sequence of card when using two or more I/O cards of the same model in one computer.
	32 channels digital I nput 32 channels digital output DIO response time is about 2 μs (500 kHz max.)
	16 TTL D/I channels and 16 TTL D/O channels Supports DO status Readback, users can get the DO status from registers
	Drop-in replacement for PIO-D64U without software/driver/wiring modification
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	Support Microsoft Windows 10 32-/64-bit version OS Support Windows XP/2003/2008/7/8 32-/64-bit version OS

For more information, please visit the PEX-D64 web site.
