Introduction

The DL-1000 is a series of particle and gas measurement module that can measure the concentration of aerosols such as PM1, PM2.5, PM10 and the number of particles (0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm) in the air. In addition, a variety of fume concentrations such as CO/CO2 which may be harmful to human health can also be measured. DL-1000 can trigger an alarm when the concentration is too high. It can be used to record PM1/2.5/10, CO, CO2, temperature, humidity and dew point information, including date and time stamps, and is able to store up to 180,000 downloadable records. Real-time data can be accessed from the DL-1000 series Data Logger from anywhere and at any time by using the free Windows software, the iOS App or the Android App, as long as is is connected to the same local network as the Data Logger being connected to. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol - MQTT. The DL-1000 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The DL-1000 series provides IP43 grade protection approval and is designed for use in industrial applications in harsh environments. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.

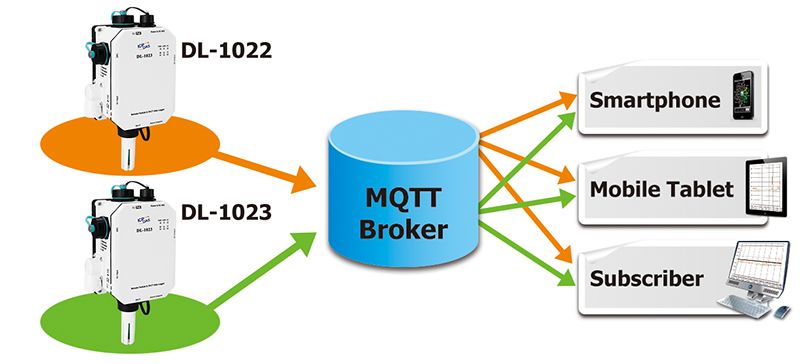

Supports the MQTT Protocol for IoT Applications Features



Multi-platform Remote Access Software

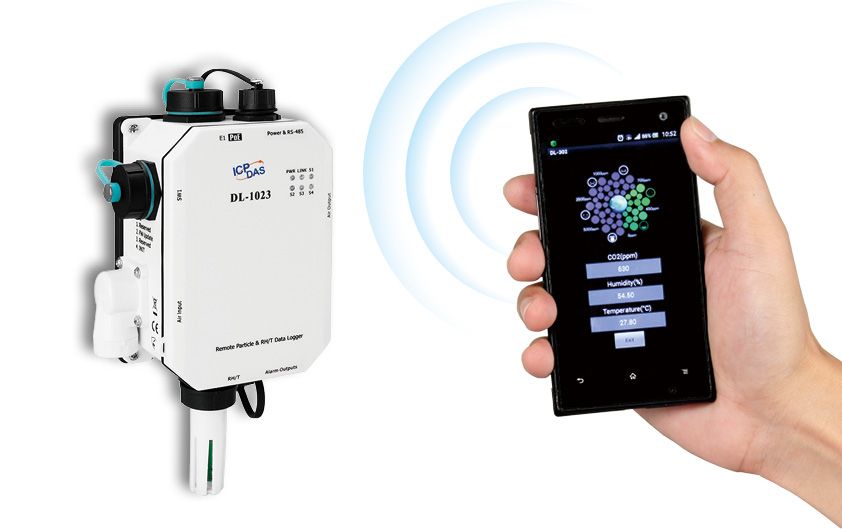

Real-time data from the DL-1000 data logger can be accessed from anywhere and at any time by using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the data logger being connected to.

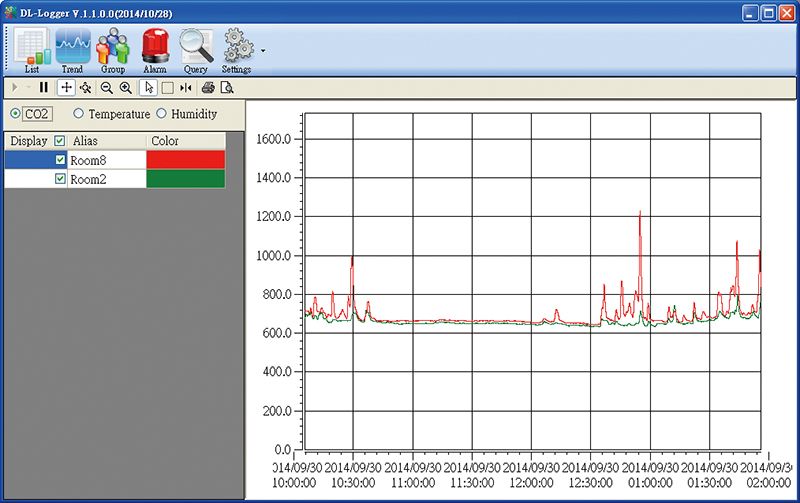

Simple and Powerful DL-300 Utility

The DL-300 Utility is a powerful tool that is designed for configuring the modules, monitoring real-time data, grouping DL-1000 modules to view and manage the status of distributed groups. It can also perform downloading of the log data and then the data can be exported to a CSV file and further being imported into any industry standard software or spreadsheet for analysis.

Features:

• Able to Record PM1/2.5/10, CO, CO2, Temperature, Humidity and Dew Point Measurements
• Non-dispersive Infrared (NDIR) CO2 Sensor
• Up to 180,000 Records with Date and Time Stamps
• Web-based Configuration Interface
• Simple and Powerful Software Utility, iOS APP and Android App Included
• Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
• Features RS-485/Ethernet/PoE Communication Interfaces
• Relay Output for Audible/Visual Alarm or IAQ Device Control
• Supports Redundant Power Inputs: PoE (IEEE 802.3af, Class 1) and DC Input
• IP 43 Protection Approval



Applications

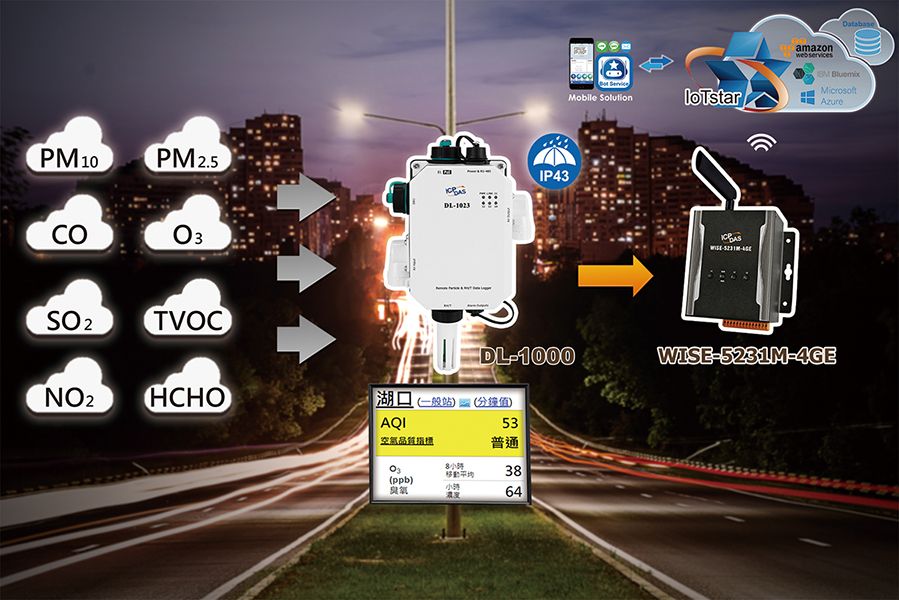

Intelligent Street Lighting in Smart City
In smart city applications, the smart street lights usually integrate a variety of communication technologies and no longer function simply as illumination only. In recent years, high-density streetlights have become important sources for government to collect environmental information around the road. DL-1000 series products feature standard industrial communication protocol - Modbus RTU/TCP and can be integrated with smart streetlights to achieve outdoor air quality monitoring such as monitoring of: O3, CO, CO2, SO2, NO2, TVOC, HCHO, and Particle Matter 1/2.5/10. Due to the accumulated aerosol may be kept around the sensor and cause error recording after using for a period of time, DL-1000 supports replaceable dust filter patch to easily change the patches inside the filter hood without the need to uninstall the device for replacement.





DL-1000 series comparison table
