Introduction:

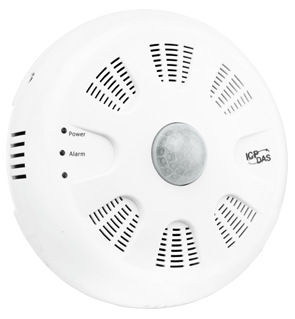

PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or can be configured to activate a fire alarm. The modules support both the DCON and the Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel. The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that they are easy to match with interior decoration.



Features:

• Adjustable Time Delay/Lux./Sensitivity
• Internal Photosensor for Smart Switch-on Control
• LED Indicator for PIR/Temperature Sensor
• Temperature Sensor for Measuring Room Temperature
• Suitable as either Temperature or Fire Alarm
• Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
• Suitable for loads up to 1500 W (Incandescent) and 300W (Fluorescent)
• Wide range of Communication Interfaces and Protocols
• Ceiling or Surface-Mount Design



Applications:

• Lighting and exhaust fans in public toilets
• Lighting in parking areas
• Common lighting in staircases
• Garden lights
• Lighting for changing rooms in shops
• Corridor lighting, and many more situations
