Introduction:

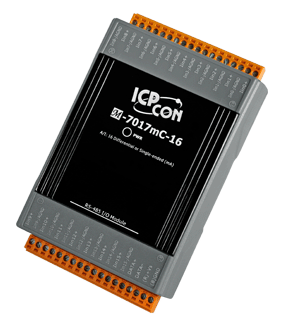

The M-7017mC-16 is a 16-channel current input module that is specifically designed to measure current only. Its user-friendly design saves both time and effort when measuring current through the built-in resistors, meaning that you can now measure current directly without adding an external resistor. The module also provides 4 kV ESD protection and 110 VDC overvoltage protection for the current input, and features 3000 VDC intra-module isolation and open wire detection for 4 to 20 mA input. The sampling rate on the M-7017mC-16 is adjustable; the users can freely choose from either fast mode or normal mode. The M-7017mC-16 contains a data logger that can be used to record the current input from all 16 channels, including date and time stamps, and is able to store up to 100,000 downloadable records.



Features:

• 16-channel Current Input
• Jumper Selectable Differential or Single-ended Wiring
• 16-bit Resolution
• Adjustable Sampling Rate
• Storage for up to 100,000 Records from16-channel Current Input
• Built-in Resistor to Simplify Current Measurement
• 110 VDC Overvoltage Protection
• 4 kV ESD and EFT Protection
• 2 kV Surge Protection
• Dual Watchdog
• 3000 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 to +75°C



Applications:

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

For more information, please refer to: https://www.icpdas.com/en/product/M-7017mC-16-G
