Introduction:

The RFU-2400 is a 2.4 GHz radio frequency modem that provides RS-232 and RS-485 port interfaces. It is designed to act as a wireless bridge to convert signals between serial and wireless formats, and is great for applications when the physical wire deployment is inconvenient. The RFU-2400 makes it easy to build a low-cost data acquisition and control application between a host and a range of remote sensors via wireless communication.

The RFU-2400 is a spread spectrum radio frequency (RF) modem based on the IEEE 802.15.4 standard. The IEEE 802.15.4 standard is operating on the ISM bands which uses a transmission frequency range between 2405 and 2480 MHz. A total of 16 channels are available and each with a channel separation of 5 MHz. Two operating modes are also supported, including Peer-to-Peer (P2P) mode, which allows full-duplex communication, and Broadcast mode, which allows half-duplex functionality in multi-point communication.


Features:

• ISM 2.4 GHz Operating Frequency
• Direct Sequence Spread Spectrum (DSSS) RF technology
• Wireless Transmission Range up to 700 m (Default)
• RS-232/RS-485 Interface Supported
• Half-duplex communication up to 115200 bps
• Full-duplex communication up to 57600 bps
• Fully External Switch for the Hardware Configuration
• Surge and ESD Protection
• DIN-Rail Mountable

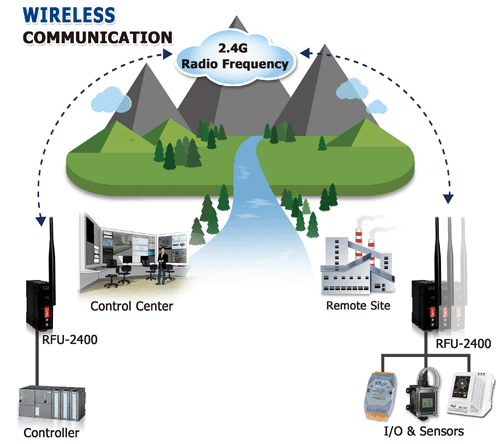

Applications:

For more information, please refer to: https://www.icpdas.com/en/product/RFU-2400
