Introduction:

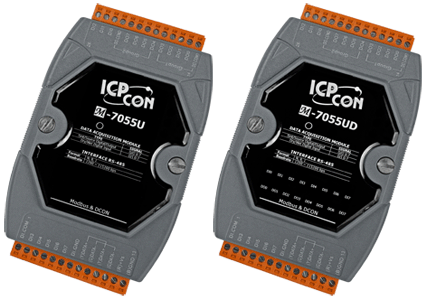

The M-7055U module provides 8 isolated channels for Digital Input and 8 isolated channels for Digital Output. Digital Input and Digital Output can be selected as either sink- or source-type via wire connection. All Digital Input channels are also able to be used as 16-bit counters. There are options to enable both power-on and safe values. The M-7055UD has 16 LED indicators that can be used to monitor the status of the Digital Input and Digital Output channels. The M-7055U(D) also provides ±8 kV ESD, ±4 kV EFT and ±2 kV surge protection, as well as 2000 VDC intra-module isolation to enhance noise protection capabilities in harsh industrial environments.


Features:

• Digital Input and Digital Output selectable as either sink- or source-type via wire connection
• All Digital Input Channels can be used as 16-bit Counters
• Built-in Dual Watchdog
• 8 kV ESD Protection
• 2000 VDC Intra-module Isolation
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Wide Operating Temperature Range: - 25 to +75°C



Applications:

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

For more details, please visit:
https://www.icpdas.com/en/product/M-7055U-G
https://www.icpdas.com/en/product/M-7055UD-G
