XP-8131-CE6 – Windows Embedded Compact 6 based XPAC
New Products
2017-05-25
Introduction
XP-8131-CE6 is a new generation Windows CE 6.0 based PACs from ICP DAS. It is equipped with an x86 CPU (1 GHz, dual-core), various connectivity (VGA, USB, Ethernet RS-232/485) and 1 slots for high performance parallel I/O modules (high profile I-8K Series) and serial I/O modules (high profile I-87K series). The benefits of running Windows CE 6.0 on XPAC include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. XPAC is also capable of running PC-based control software such as Visual Basic .NET, Visual C#, etc. It has all of the best features of both traditional PLCs and Windows capable PCs.Local I/O and Communication Expansion Modules
There is 1 slot provided to expand the local I/O. And the I/O modules can be parallel bus type (I-8K series) or serial bus type (I-87K series).The I/O slots support parallel bus type (I-8K series) and serial bus type (I-87K series) I/O modules. These modules provides wide-range options for different I/O combination to implement all kinds of I/O functions such as: AI, AO, DI, AO, counter input, frequency input, PWM output, motion control, memory, communication, etc.
I-8K & I-87K:
https://www.icpdas.com/en/product/guide+Remote__I_O__Module__and__Unit+PAC__%EF%BC%86amp;__Local__I_O__Modules+I-8K_I-87K__Series__(High__Profile)

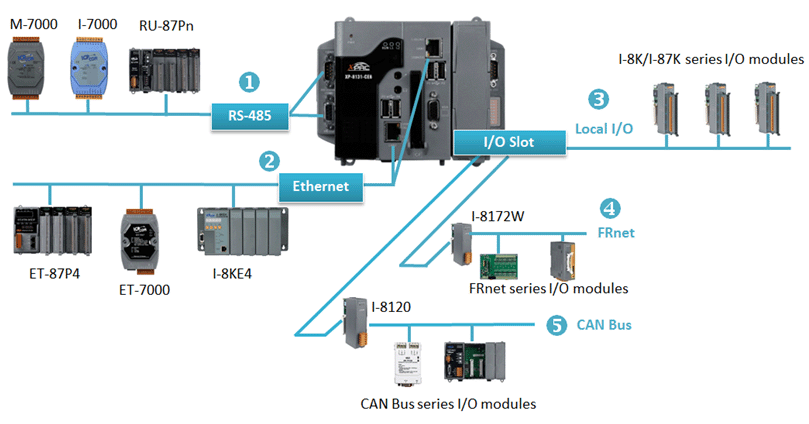

Multi-Communication Interface
There are several communication interfaces can be used to expand I/O and connect to external devices:1. Ethernet
2. RS-232/485
Features:
- Windows Embedded Compact 6
- x86 CPU, 1 GHz, dual-core
- Memory Size:
- DDR3 SDRAM (2 GB), Built-in Flash Disk (32 GB)
- EEPROM (16 KB), CF Card (8 GB)
- Non-volatile RAM (512KB)
- VGA Port x 1, USB 2.0 port x 2, Series port (RS-232/RS-485) x 4
- Dual Ethernet Ports (10/100M/1G)
Instructions for upgrading from XP-8041-CE6/XP-8141-Atom-CE6 to XP-8131-CE6
| Specification Comparison | |||
|---|---|---|---|
| Specification | XP-8041-CE6 | XP-8141-Atom-CE6 (Phased-out) | XP-8131-CE6 (New) |
| OS | Windows Embedded Compact 6 | ||
| CPU | AMD LX800 (500 MHz) | Atom Z510 (1.1 GHz) | x86 (1.0 GHz, dual-core) |
| RAM size | 512 MB | 512 MB DDR2 | 2 GB DDR3 |
| ROM size | 4 GB | 8 GB | 32 GB |
| Non-volatile Memory | 512 KB (dual-battery backup) | 512 KB (dual-battery backup) | 512 KB (retain memory without battery support) |
| Ethernet | 10/100 Base-TX * 2 | 10/100/1000 Base-TX * 2 | 10/100/1000 Base-TX * 2 |
| USB | USB1.1 * 2 | USB2.0 * 4 | USB2.0 * 4 |
| Ethernet | 0 | 1 | 1 |
- Compared with the XP-8141-Atom-CE6, the dimensions and the peripheral communication interface are completely compatible with the XP-8141-Atom-CE6. So it is very to replace XP-8041-CE6 and XP-8141-Atom-CE6 directly.
- The first version of OS (version 1.0.0.0) for XP-8x31-CE6 series doesn’t support interrupt function, thus I-8112W, I-8114W, I-8114iW, I-8142iW, I-8144iW,
I-8048W and I-8014W cannot be used on the XP-8x31-CE6 at this moment. The next OS version will provide interrupt function.
