VP-4231-CE7 – ViewPAC for 10.4” touch panel (Windows Embedded Compact 7.0-based)
New Products
2017-05-25
Introduction

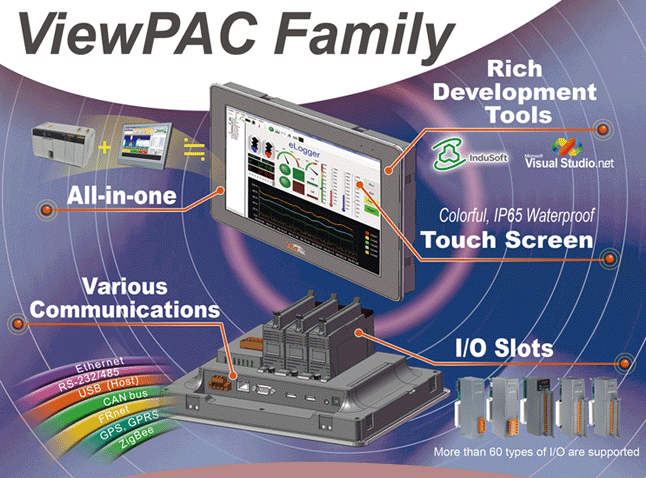

The VP-4231-CE7 is a WinCE7-based ViewPAC module that combines computing, I/O, and an operator interface into a single unit, and provides the perfect solution for integrating HMI, and data acquisition and control in an individual PAC. The VP-4231-CE7 is equipped with a Cortex-A8 1GHz CPU, a TFT LCD, and a variety of connection ports, including a Gigabit Ethernet port, a USB port, and an RS-232/RS-485 interface. The capacity for I/O expansion is available, meaning that you can take advantage of the ICP DAS Ethernet and RS-485 I/O modules. The VP-4231-CE7 is designed to operate over a wide - ambient temperature range from -20°C to 70°C, and the fan-less design offers the ultimate in reliability with no moving parts.Compared with the VP-4131, the hardware size and peripheral communication interface position number are completely compatible with the VP-4131, and the hardware can be directly upgraded. Hardware specifications include faster CPU, Gigabit Ethernet and larger RAM / Flash memory. Overall system performance improves than the previous generation greatly.
Features:
- Cortex A8, 1GHz CPU
- Flash: 256 MB ; SDRAM: 512 MB
- CE7 (Windows Embedded Compact 7)
- Hard Real-time Capabilities
- One 10/100M /1G Ethernet network
- Two serial port (RS-232, RS-485)
- LCD Display
- 128 KB MRAM
- Wide range of I/O Expansion capabilities
- 3 I/O Slots
- Dual Watchdog
- Six Rubber Keypad
- 64-bit Hardware Serial Number
- Free eLogger HMI included
- Ultra-rugged Construction and Reliable Design
- Wide Operating Temperature Range: -20°C to +70°C
For more information about VP-4231, visit: https://www.icpdas.com/en/product/VP-4231-CE7
Instructions for upgrading from VP-4131 to VP-4231-CE7
| Specification Comparison | ||
|---|---|---|
| Specification | VP-4131 | VP-4231-CE7 (New) |
| OS | WinCE 5.0 | WinCE 7.0 |
| CPU | PXA270, 520 MHz | Cortex-A8, 1 GHz |
| RAM size | 128 MB | 512 MB |
| ROM size | 96 MB | 256 MB |
| Ethernet | 10/100 Base-TX | 10/100/1000 Base-TX |
| Dimensions size |  (W x H x D): 182 mm x 125 mm x 158 mm |
(W x H x D): 182 mm x 125 mm x 158 mm |
Compared with the VP-4131, the hardware size and peripheral communication interface position number are completely compatible with the VP-4131, and the hardware can be directly upgraded. Hardware specifications include faster CPU, Gigabit Ethernet and larger RAM / Flash memory. Overall system performance improves than the previous generation greatly.
For more different about VP-4231 with VP-4131, visit:
https://www.icpdas.com/en/product/guide+Panel__Products+ViewPAC+WinCE__ViewPAC#1023
