Introduction

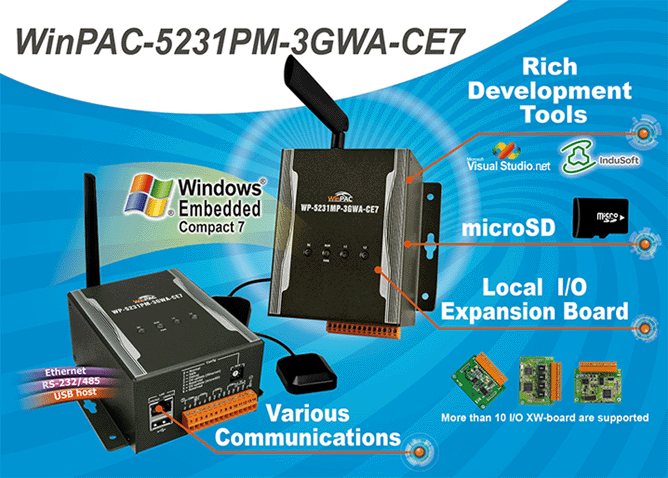

The WP-5231PM-3GWA-CE7 is WINCE 7.0 based WinPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with a Cortex-A8 1GHz CPU and Gigabit Ethernet, USB port, RS-232 and RS-485 interface. An I/O expansion slot is available to extend the various I/O module data capture.
The Built-in Windows CE 7.0 OS with hardware real-time, small size core, fast boot, deep interrupt handling and more stable control. It also supports PC compatible development software, such as: Visual Basic. NET, Visual C #, Visual C + + and other software. Designed to operate over a wide -25°C ~ 75°C ambient temperature range, the fan-less design offers the ultimate in reliability with no moving parts.


Local I/O and Communication Expansion Board

WinPAC-5231PM-3GWA-CE7 series equip an I/O expansion bus to support one optional expansion board, called XV-board. It can be used to implement various I/O functions such as DI, DO, A/D, D/A, Timer/Counter.
XV-board: https://www.icpdas.com/en/product/guide+Remote__I_O__Module__and__Unit+PAC__%EF%BC%86amp;__Local__I_O__Modules+XV-board

Multi-Communication Interface

There are several communication interfaces to expand I/O and connect to external devices:

1. Ethernet
2. RS-232/485
3. GPS
4. GSM/GPRS



Features:

• Cortex A8, 1GHz CPU
• Flash: 256 MB ; SDRAM: 512 MB
• CE 7.0 (Windows Embedded Compact 7)
• Hard Real-time Capabilities
• One 10/100M /1G Ethernet network
• 3 serial port (RS-232, RS-485)
• Wide range of I/O Expansion capabilities
• Dual Watchdog
• 64-bit Hardware Serial Number
• Free eLogger HMI included
• Ultra-rugged Construction and Reliable Design
• Wide Operating Temperature Range: -25°C to +75°C
• 64KB FRAM

The differentiation with the WP-5231-CE7 and WP-5231PM-3GWA-CE7
For more information about WP-5231PM-3GWA-CE7 visit: https://www.icpdas.com/en/product/WP-5231PM-3GWA-CE7
