Introduction

The IoT (Internet of Things) has been a much discussed topic in recent years. Using the IoT concept, it is easy to integrate the environment of heterogeneous network and digitized all of the things which makes life more convenient. In order to provide more access to IoT industrial applications based on the CAN bus, ICP DAS has developed a new Ethernet product - the ECAN-240.
The ECAN-240 module is a Modbus TCP to 2-port CAN Bus Gateway. It provides communications via the Ethernet based on the Modbus TCP industrial protocol, meaning that the module can be easily integrated with an industrial network. In addition, the ECAN-240 module includes two CAN bus interfaces, so that it can support different CAN applications.


Application Architecture:

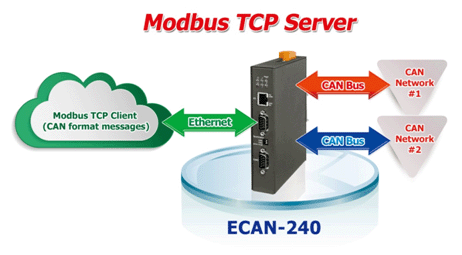

 ▶ Modbus TCP Server:

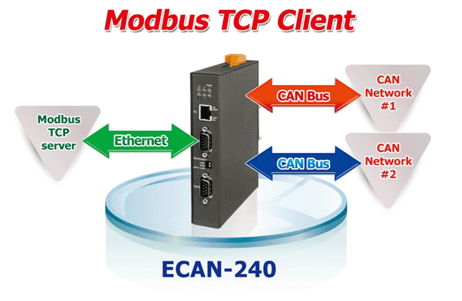

▶ Modbus TCP Client:

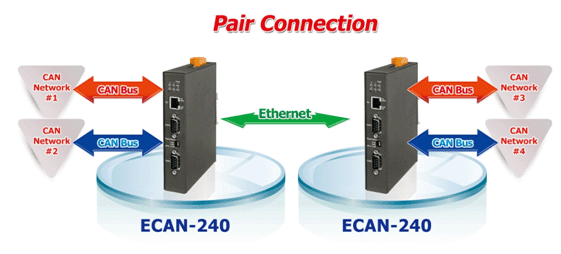

▶ Pair Connection:

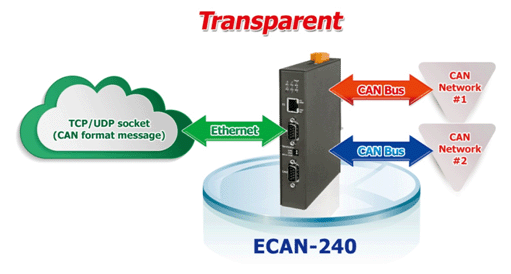

▶ Transparent:

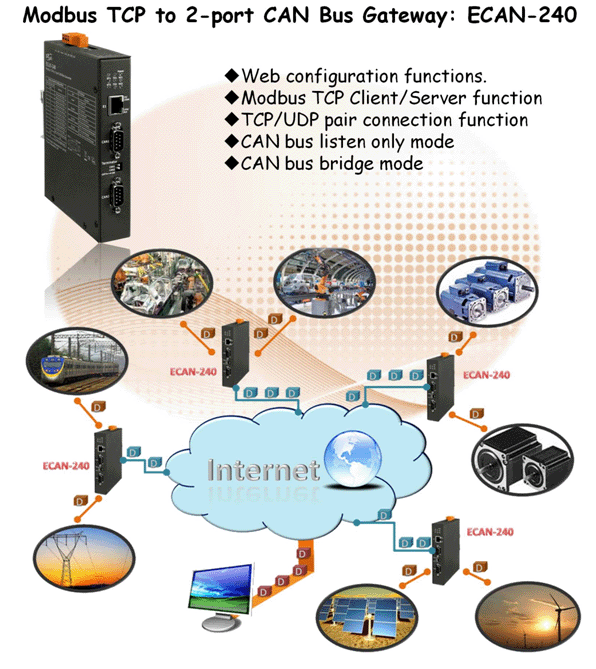

Features:

• Fully compatible with the ISO 11898-2 standard.
• Provides support for the CAN bus ID filter function.
• Provides support for the CAN bus bridge mode via configuration.
• Provides support for the CAN bus listen only mode via configuration.
• Provides support for the Modbus TCP Client/Server function via configuration.
• Provides support for TCP/UDP pair connection function via configuration.
• Provides support for web configuration functions.

The comparison of the Ethernet/CAN Module:

Module Name	ECAN-240	I-7540D	I-7540D-MTCP	I-7540D-WF
Pictures
CAN Interface
CAN Connector	9-pin D-sub male	Screwed terminal block	Screwed terminal block	Screwed terminal block
Channel number	2	1	1	1
Baud Rate (bps)	10k to 1M bps and user-defined	10k to 1M bps and user-defined	10k to 1M bps and user-defined	5k to 1M bps
Max. FPS (@1Mbps)	Modbus: 987 to 990 Pair Connection: 5700 to 5800	1852 to 2244	2118 to 2241	700
CAN FIFO	256 frame	1000 frames	200 frames	256 frames
Ethernet Interface
Controller	10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)			Wi-Fi (IEEE 802.11b/g)
Protocol	TCP/UDP Socket Modbus TCP	TCP / UDP Socket	Modbus TCP Server	Wi-Fi (IEEE 802.11b/g) TCP Socket (Client / Server)
Socket clients	8	25	24	3
others	Alternative Server/Client Mode	Support Virtual COM	Acts as Modbus RTU slave	Infrastructure & Ad-hoc mode
