Introduction:

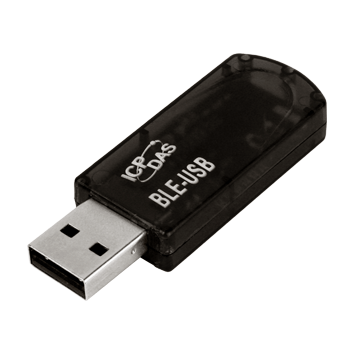

The BLE-USB module is small-sized wireless Bluetooth low energy (LE) converter based on the Bluetooth 4.0 standard that allow USB interface to be converted to Bluetooth LE piconet network. The BLE-USB has two transmission modes – advertisement and connection mode. User can use AT command to set the role of Bluetooth LE and some connection parameters (e.g. RF power level, broadcast parameters and slave amount).



Features:

• Frequency: ISM 2.4 GHz
• Standard: Bluetooth 4.0
• Fully Compliant with the USB 1.1/2.0 (High Speed)
• Supports OTA firmware upgrade
• Supports baud rate: 9600 to 115200 bps
• Supports multiple connections – Max slave is 3
• Supports two types of communication- advertisements and connection
• Provides AT commands to setup the module
• Provides status / RF link indication LEDs
• No External Power Supply required
• Operating Temperatures, -25 °C to +75 °C

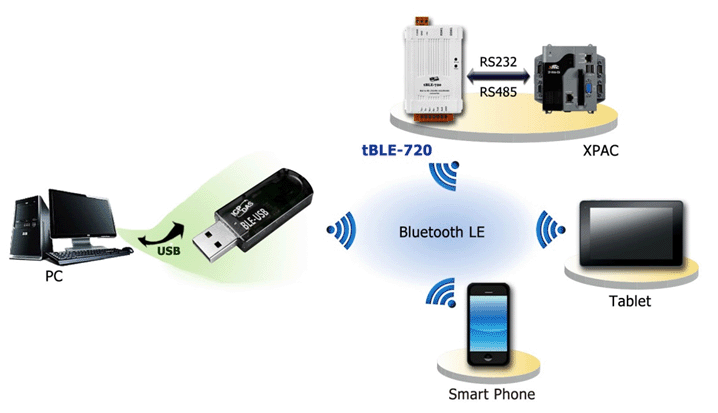

Applications:



Utility Features:

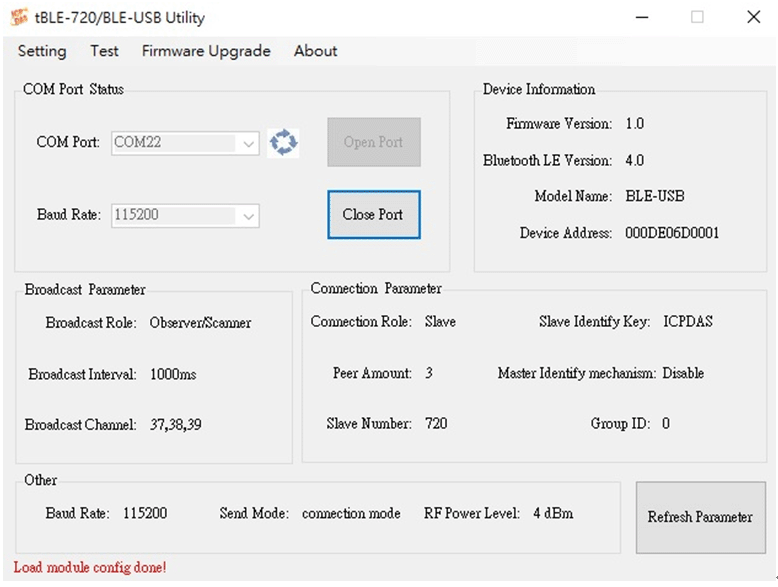

ICP DAS provides the BLE-USB configuration utility based on Windows OS.

• Parameters configuration
• Firmware upgrade
• Easy to test transmit/receive function
• Setting files management

For more information, please visit the following website: https://www.icpdas.com/en/product/BLE-USB
