Introduction:

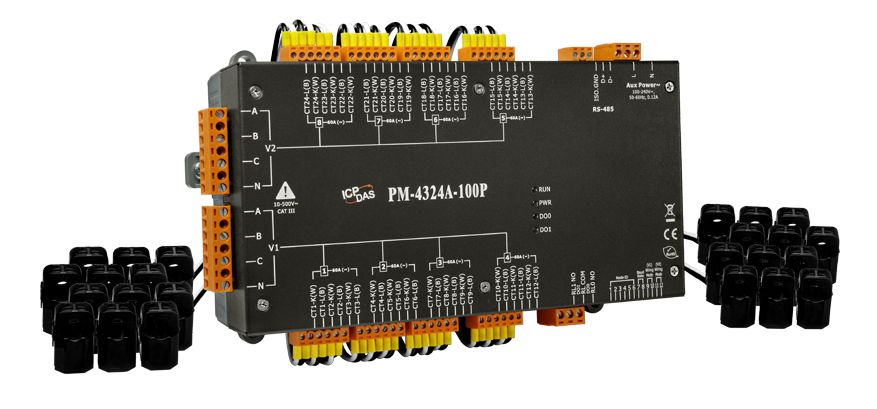

The PM-4324A-100P multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits.
The PM-4324A-100P is the same model as the PM-4324, except for the AC Measurement. The PM-4324A-100P has 2 separate main circuit inputs that can use in the different power system.


Features:

• 8 Three Phase Circuits or 24 Single Phase Circuits
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• 2 Independent main circuit inputs for PM-4324A series
• Current Measurements Up to 400 A with Different CT Ratio
• Voltage Measurements Up to 500 V
• Easy install with split core CT
• W Accuracy Better than 0.5% (PF=1)
• Support RS-485, Ethernet or CAN bus Interface
• Support 2 Power Relay Output (Form A)
• Total Harmonic Distortion (THD)

PM-4324A-100P Website: https://www.icpdas.com/en/product/PM-4324A-100P
