Introduction:

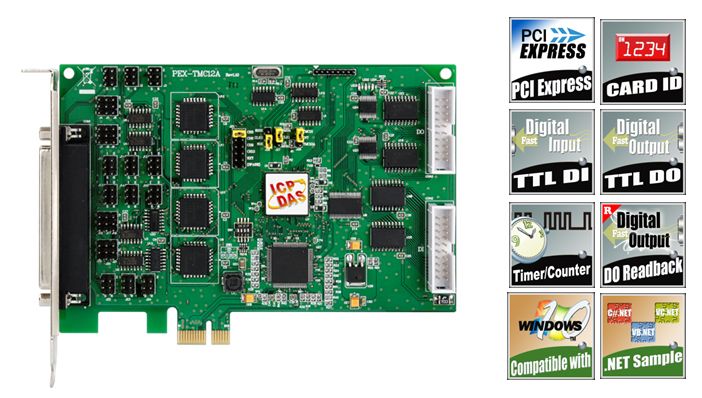

The PEX-TMC12A card is a new generation product that ICP DAS provides to meet RoHS compliance requirement. The PEX-TMC12A utilizes the PCI Express bus and is designed as an easy replacement for the PCI-TMC12AU without requiring any modification to either the software or the driver.

The PEX-TMC12A provide twelve 16-bit timers/counters (four 82C54 chips x 3 timers/counters), 16 TTL digital input channels and 16 TTL digital output channels. The two onboard clocks (8 M/1.6 M and 0.8 M/80 K) are jumper selectable and provide a high-resolution clock source for timers/counters. Counters/timers can be used for industrial and laboratory applications such as pulse/event/switch-toggle counting, frequency readings, elapsed time measurement, pulse-width measurement, PWM (pulse-width-modulated) output, pulse (square wave) and rate generation, etc.

The PEX-TMC12A also adds a Card ID switch on board. Users can set Card ID on a board so that the board can be recognized by the ID via software when using two or more PEX-TMC12A cards in one computer.

The PEX-TMC12A supports a variety of operating systems, such as DOS, 32-/64-bit Windows XP/2003/2008/7/8 and Windows 10. ICP DAS also provides a DLL and Active X control for the PCI-TMC12A/TMC12AU, together with sample programs in various languages, including Turbo C++, Borland C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW, enabling to help users to quickly and easily develop their custom applications.



Feature & Special:
	Support the PCI Express bus
	Card ID function: Users can set Card ID to recognize sequence of card when using two or more I/O cards of the same model in one computer.
	4 onboard 8254 timer/counter chips 12 independent 16-bit timers/counters 12 external clock inputs 12 external gate control inputs 12 timer/counter output channels 16-bit timer/counter can be cascaded to create 32/48-bit timer/counter Gate input can be either an external signal or the output of a previous timer/counter channel Two internal clock source
	16 TTL D/I channels and 16 TTL D/O channels Supports DO status Readback, users can get the DO status from registers
	Drop-in replacement for PCI-TMC12AU without software/driver/wiring modification
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	Support 32/64-bit Windows 10 Support 32/64-bit Windows XP/2003/7/2008/8

For more information, please visit the PEX-TMC12A web site.
