Introduction:

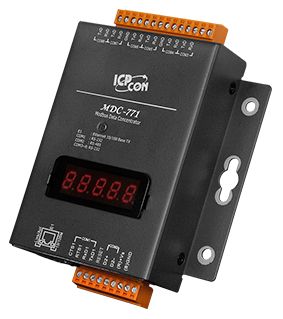

MDC-700 series is a Modbus Data Concentrator that has ability to perform up to 250 Modbus/RTU commands to read/write from/to Modbus slave devices via RS-232/485 and allows up to 8 Modbus/TCP masters to retrieve the polling data via the Ethernet.
MDC-700 series provide a built-in web server for easy configuration and display the information of the performed results of each Modbus/RTU command on the RS-232/485.

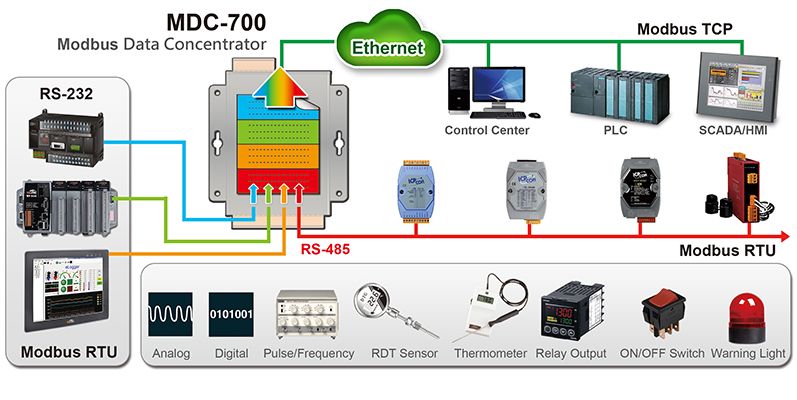

Application Architecture:

Features:

• Supports Modbus master/slave on the serial port and Modbus TCP slave on the Ethernet interface
• Supports up to 8 simultaneous Modbus TCP connections at a time
• Data pool for up to 9600 registers
• Modbus polling commands for up to 250 definitions
• Easy configuration with a simple CSV file for quick start-up
• HTML5 Web-based user interface

For more information, please visit the following website: https://www.icpdas.com/en/product/MDC-771
