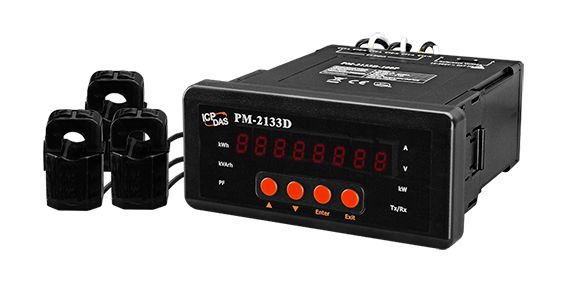

PM-2133D-100P – 3-Phase Smart Power Meter with LED Display, includes 3x CT (60A, ID 10 mm)
New Products
2020-03-31
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-2133D series that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<0.5%, PF=1), the PM-2133D series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipment in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 400 A). It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. This meter has LED display shows power.
Features:
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- Current Measurements Up to 400 A with Different CT Ratio
- Voltage Measurements Up to 500 V
- Clip-on CT for Easy Installation
- W Accuracy Better than 0.5% (PF=1)
- 8-Digit LED Display
- Supports Modbus RTU Protocol
- Total Harmonic Distortion (THD)
- Bi-directional Energy
Similar Products:
| Model Name | PM-2133D-xxxP | PM-3033 | PM-3133-xxxP | PM-3133i-xxxP | PM-3133-RCTxxxP |
|---|---|---|---|---|---|
| Spotlight | With LED Display | To secondary output | Generic | Isolated | Rogowski Coil |
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT | ||||
| Max. Voltage | 500V | 500V | 500V | 600V | 500V |
| Max. Current | Includes Clip-on CT, CTΦ10 mm (60 A), CTΦ16 mm (100 A), CTΦ24mm (200 A), CTØ36 mm (300 A), CTØ36 mm (400 A) |
without CT, 1A or 5A |
Includes Clip-on CT, CTΦ10 mm (60 A), CTΦ16 mm (100 A), CTΦ24mm (200 A), CTØ36 mm (300 A), CTØ36 mm (400 A) |
Includes Clip-on CT, CTΦ10 mm (60 A), CTΦ16 mm (100 A), CTΦ24mm (200 A), CTØ36 mm (300 A), CTØ36 mm (400 A) |
Includes Rogowski Coil type CT, CTΦ55 mm (500 A), CTΦ80 mm (1000 A), |
