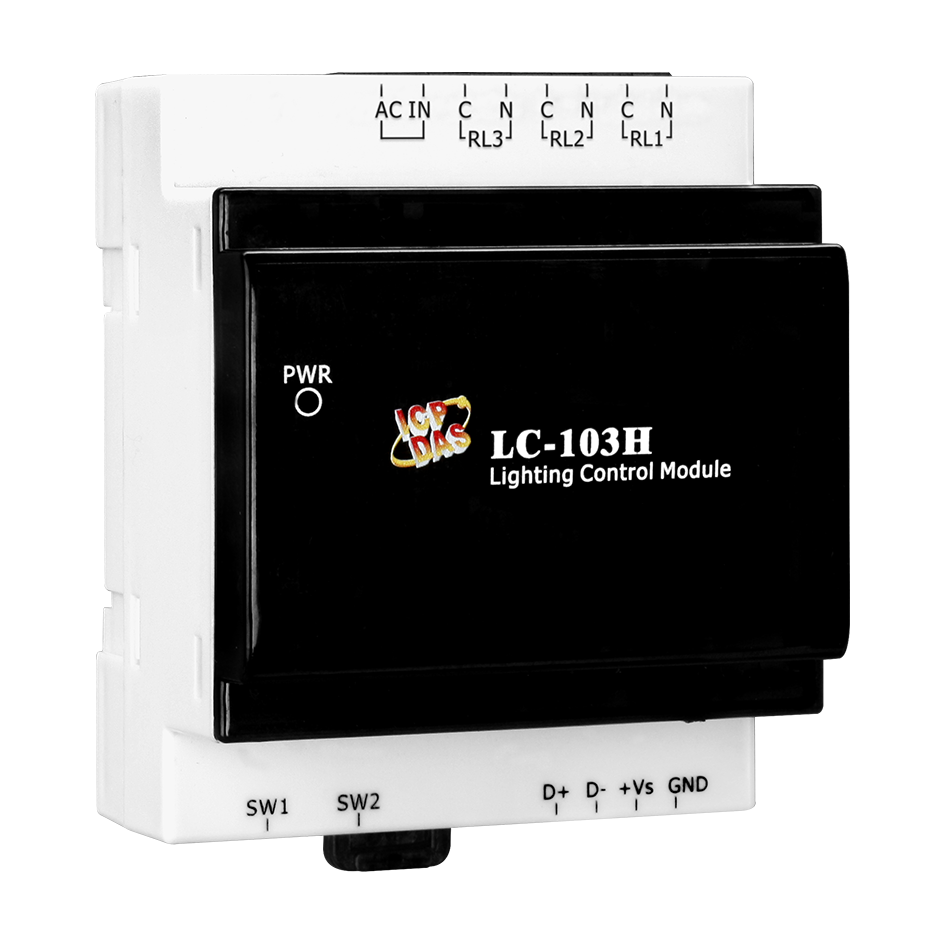

LC-103H – 1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module
New Products
2020-01-09
Introduction:

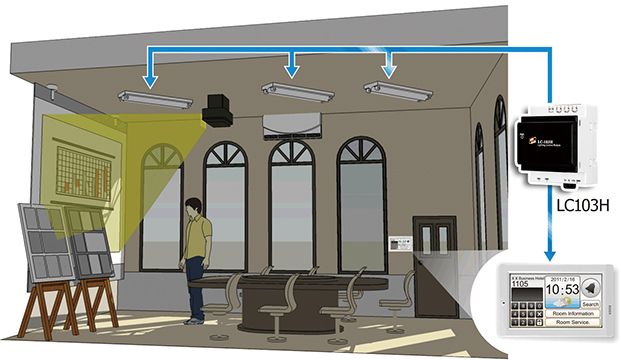

The LC-103H is an easy-to-use lighting control module that can be easily installed and operated without requiring specialist knowledge or skills. The input channel can directly control a 3-channel relay ON and OFF sequence without requiring a remote host controller. 4 kV ESD protection and 5000 VDC intra-module isolation are also provided. Communication with the LC-103H is programmable based on the DCON & Modbus RTU protocol, with the added benefit that different addresses can be set via hardware configuration.
Features:
- Provide the Wall Switch Function to Control 3-channel Relay ON and OFF sequence
- Relay Operation Current: 16 A (Resistive Load) @ 250 VAC Recommend Working Current: 1.5 A
- Isolated AC Digital Input
- Max. Lighting Loads:
- T8 Fluorescent Lamp: (40W/220VAC) * 8 Sets
- LED Lamp: (40W/220VAC) * 10 Sets
- Supports Modbus RTU and DCON Protocols
- 5000 VDC Intra-Module Isolation
- ±2 kV Surge, ±4 kV ESD and EFT Protection
- DIN-Rail Installation
| LC-103 | LC-103H | |
|---|---|---|
| Max. Load Current | 5 A (Resistive Load, recommend working current is 0.4 A with 220VAC) | 16 A (Resistive Load, recommend working current is 1.5 A with 220VAC) |
| Max. Inrush Current | 40A / 100us | 165A / 20ms or 492A / 1.5ms |
| Max. Lighting Loads | T8 Fluorescent Lamp: (40W / 220VAC) * 2 Sets | (1) T8 Fluorescent Lamp: (40W / 220VAC) * 8 Sets (2) LED Lamp: (40W / 220VAC) *10 Sets |
| EMS Protection | ±2 kV ESD and EFT Protection | ±2 kV Surge Protection, ±4 kV ESD and EFT Protection |
| Connector | RJ-11 (6P4C or 6P6C) | PCB Terminal Blocks (5.0mm), Push in design |
| Baud Rate | 9600 bps (Fixed) | 9600 ~ 115200 bps by HW/SW selectable |
| Protocol | Modbus RTU (LC-103 Only) DCON (LC-103-C Only) |
Modbus RTU / DCON (By software selectable) |
| DCON Utility | No | Yes |
| Dimensions (W x L x H) | 52 mm x 98 mm x 27 mm | 72 mm x 100 mm x 59 mm |
Ordering Information:
| LC-103H CR | 1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module with High Power Relay Output (RoHS) |
For more information, please refer to:
https://www.icpdas.com/en/product/LC-103H
