The PM-4324AP series from ICP DAS is a multi-circuit smart power meter capable of monitoring up to 8 three-phase circuits or 24 single-phase circuits, or any combination of both. It measures up to 24 current inputs via external
current transformers (CTs), offering flexibility ideal for multi-tenant facilities such as residential complexes, office buildings, and shopping malls. With its compact size, the PM-4324AP can be easily installed inside existing panel boards or flush-mounted nearby, avoiding the need for costly retrofitting or allocating extra installation space.

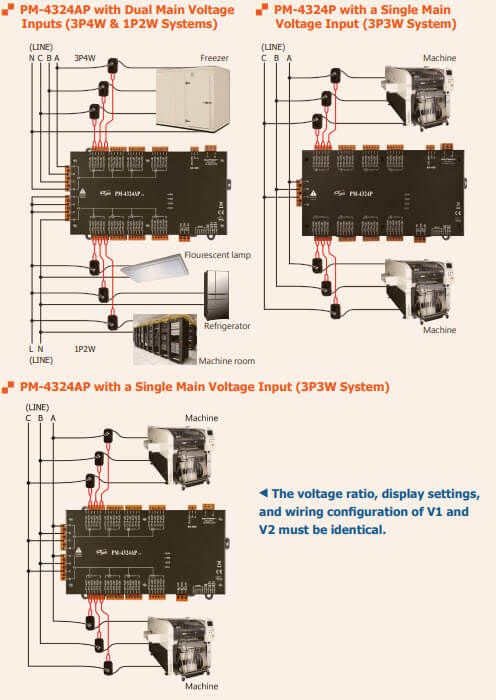

The PM-4324AP is equipped with two independent main voltage inputs, allowing it to monitor two different power systems separately. Alternatively, the two inputs can be connected in parallel and used as a single main circuit input, providing functionality equivalent to the PM-4324P. This design offers greater flexibility and adaptability for various applications.

The PM-4324AP does not include CTs by default; but users can select compatible CTs with a 333 mV voltage output. Rogowski coils are not supported.

Applications:


Features:
