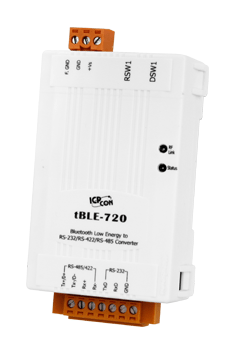

tBLE-720 – RS-232/422/485 to Bluetooth LE Converter

New Products 2017-08-01

Introduction:

The tBLE-720 module is designed for serial network like RS-232/422/485. It allows RS-232/422/485 interface to be converted to Bluetooth low energy (LE) piconet network. User can choose tBLE-720 or mobile device to do the connection, which provides Bluetooth LE data conversion between two devices. The tBLE-720 has two transmission modes –broadcast and connection mode. The tBLE-720 supports a lot of useful AT commands. They can set many parameters such as connection parameters, broadcast parameters and Bluetooth LE role.

Features:

Frequency: ISM 2.4 GHz
Standard: Bluetooth 4.0
Interface: RS-232, RS-422 and RS-485
Baud Rate up to 115200 bps
Wireless transmission range up to 20 meters(Line of Sight)
Supports OTA firmware upgrade
Supports multiple connections – Max slave is 3
Supports two types of communication- broadcast and connection
Provides AT commands to setup the module
Provides status/RF link indication LEDs
Easy-to-use switch for baud rate and Bluetooth LE role setting
Operating temperatures, -25 °C to +75 °C

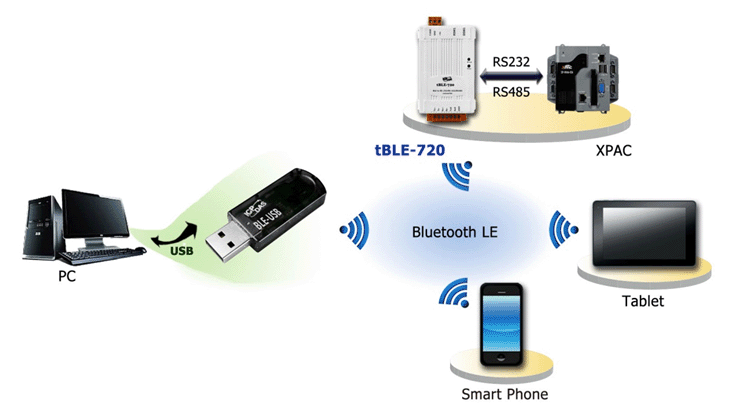

Applications:

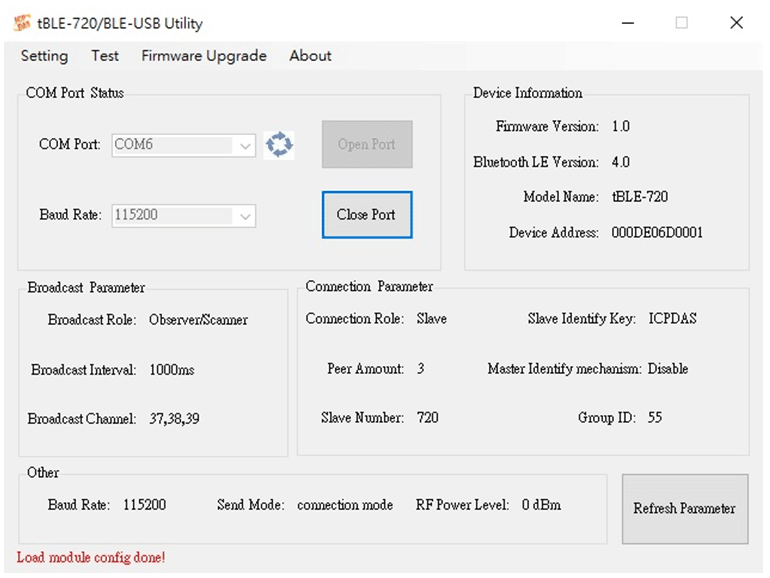

Utility Features: ICP DAS provides the tBLE-720 configuration utility for Windows OS.
	Parameters configuration Firmware upgrade Easy test to transmit/receive Setting files management

For more information, please visit the following website: http://m2m.icpdas.com/tBLE-720.html
