Introduction:

VP-x201 series in addition to previously released VP-2201-CE7/VP-4201-CE7, now three different panel sizes VP-3201-CE7/VP-5201-CE7/VP-6201-CE7are also available. They are WINCE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide a perfect solution to integrate HMI, data acquisition and control in an individual PAC. Each ViewPAC is equipped with an ARM AM3354 CPU, TFT LCD and a variety of connectives including a Gigabit Ethernet, USB port, RS-232 and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. In addition, it is designed for panel mount installation; the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. It also designed to operate over a wide -10°C to 60°C ambient temperature range; the fanless design offers the ultimate in reliability with no moving parts.



Features:
	8.4"(VP-3201-CE7), 12.1" (VP-5201-CE7) and 15"(VP-6201-CE7) TFT LCD AM3354, 1G Hz CPU CE7 (Windows Embedded Compact 7) Hard Real-Time Capability Support eLogger HMI (free) PoE (Power over Ethernet) NEMA 4/IP65 Compliant Front Panel Ultra-Rugged Construction and Reliable Design Operating Temperature: -10 °C to +60 °C

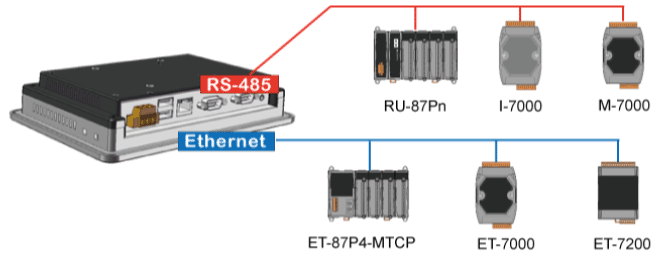

I/O expansion:
