Introduction:

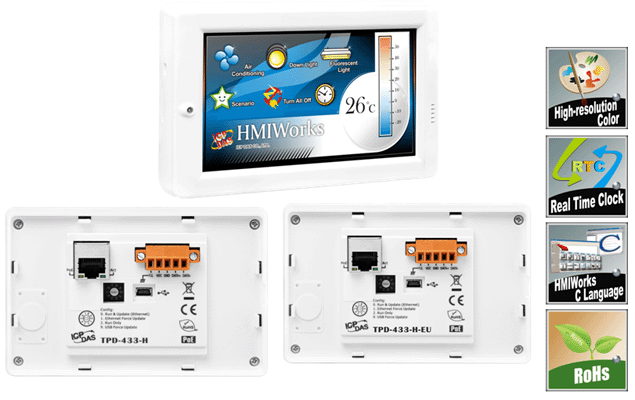

TPD-433-H/TPD-433-H-EU is a series of touch HMI and designed for building and home automation. TPD 4.3 inch series is equipped with high resolution TFT color touch screen and can be fitted in a regular electrical wall-mount outlet. Besides, it can be seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided also. It takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.


Features:

The following is the features comparisons table for the TPD-433-H/433-H-EU series models:

Model	Memory Expansion	Image Storage Capacity	Communication Interface		LCD	RTC	Outlet Box	Power Input
			COM Port	Ethernet
TPD-433-H	16 MB SDRAM/ 16 MB Flash	64	COM1:RS-485	Ethernet (10/100 Mbps)	4.3 TFT (Resolution 480 x 272, 65536 colors)	Yes	Suitable for the Outlet Box in United States	+12 ~ 48 VDC or PoE
TPD-433-H-EU							Suitable for the European 86 x 86 mm Outlet Box

For more information, please visit the TPD-433-H/433-H-EU web site.
