ET-8KP8-MTCP – Modbus TCP I/O expansion unit
New Products
2018-01-16

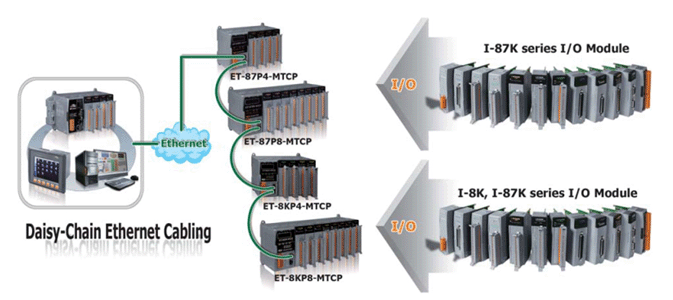

ET-8KP8-MTCP series is a Modbus TCP I/O expansion unit to expand I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports for daisy-chain topology. The daisy-chain feature allows ET-87Pn to connect in series to each other or other Ethernet devices. It also simplifies the wiring and saves the installation space.
Specification:
| Models | ET-8KP8-MTCP |
| Communication Ports | |
| Protocol | Modbus TCP Slave |
| Modbus RTU/ASCII Slave | |
| Modbus TCP to RTU Gateway | |
| Ethernet | RJ-45 x 2, 10/100 Base-TX (Auto negotiating, Auto MDI/MDI-X, LED indicators) |
| COM 1 | RS-232 (to update firmware) (RxD, TxD and GND); non-isolated |
| SMMI | |
| LED Display | Yes, 5-Digit LED Display |
| Push Buttons | 4 |
| I/O Expansion Slots | |
| Slot Number | 8 |
| For High Profi I-87K/I-8K Modules | |
| Hot Swap | No |
| Mechanical | |
| Dimensions (W x L x H) | 312 mm x 132 mm x 111 mm |
| Environmental | |
| Operating Temperature | -25 to +75 °C |
| Storage Temperature | -30 to +75 °C |
| Ambient Relative Humidity | 10 to 90% RH (non-condensing) |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Isolation | 1 kV |
| Redundant Power Inputs | Yes |
| Capacity | 30 W |
| Consumption | 2.4 W |
For more information, please visit the link below: https://www.icpdas.com/en/product/ET-8KP8-MTCP
