Introduction:

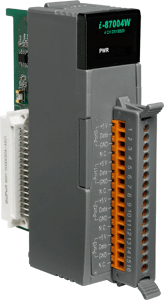

The I-87004W is a digital temperature sensor module that provides four ports for 2- or 3 wire DS18B20 digital temperature sensor input. The DS18B20 temperature sensor has a high accuracy of ±0.5°C when measuring temperatures between -10 and +85°C, with a total measurement range of between -55 and +125°C. Up to 20 DS18B20 sensors can be connected to each port on the I-87004W module in a daisy-chain arrangement with a maximum wiring distance of 100 meters. The I-87004W module is fully RoHS compliant, and features 4 kV ESD protection as well as 3000 VDC intra-module isolation.


Features:
	4-Port DS18B20 Sensor Input Module 2/3-wire DS18B20 Wire Connection Max 20 Sensors per Port Max. Distance of 100 m per Port when using Daisy-Chain Wiring Measures Temperatures from -55 to +125°C ±0.5°C Accuracy from -10 to +85°C 4 kV ESD Protection 3000 VDC Intra-module Isolation, Field to Logic RoHS Compliant Wide Operating Temperature Range: -25 to +75°C

For more details, please visit:
https://www.icpdas.com/en/product/I-87004W-G
