GAM-100 – Bluetooth LE Gauge Master

New Products 2018-05-21

Introduction:

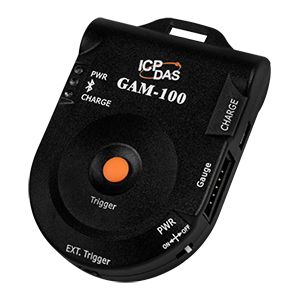

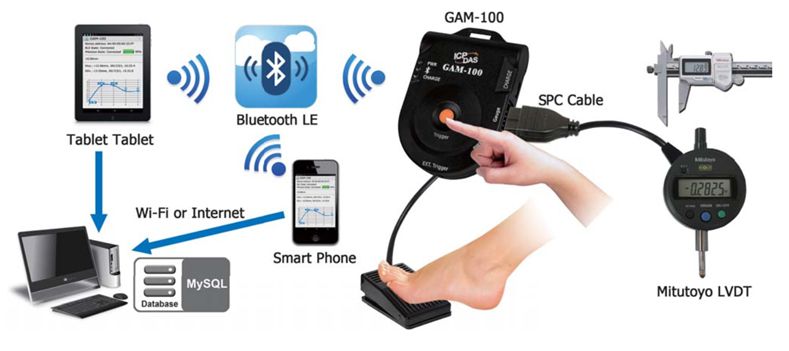

The GAM-100 is a Bluetooth Low Energy (Bluetooth LE/Bluetooth 4.0) gauge master for Mitutoyo gauges with SPC output. The gauge master connects Mitutoyo gauges by SPC interface. A smart phone or tablet can use Bluetooth to retrieve Mitutoyo gauge data through the gauge master. With the built-in micro USB chargeable Li-ion battery, the gauge master can work up to 100 hours. To retrieve and record the data, an Android APP is designed for the mobile device. The data can be kept in the local memory storage or uploaded to the remote MySQL server.

Applications:

Features:

Frequency: ISM 2.4 GHz
Standard: Bluetooth 4.0
Wireless transmission range up to 20 meters (Line of Sigh)
Fully compliant with the Mitutoyo ID-S1012MX/ NTD-10-6” PMX
LED indicators for Battery/RF link/Charge LEDs
Support different transmission rate: 1/2/5/10 Hz
Support Trigger button and 3.5 mm foot switch connector to log data
Support different trigger mode: Single and Continuous
Power by micro USB chargeable Li-ion battery
Battery Usage Life: 100 HR/10 Hz
Support Android APP for gauge data acquisition and configuration

Android APP Features: ICP DAS provides an Android app for GAM-100. The Android OS version must be greater than Android 5.0 (API Level 21). In addition to the Android OS version, the device must also support Bluetooth Low Energy (Bluetooth LE/Bluetooth 4.0).
	Provide device search function Support RTC calibration Support trigger mode configuration Support device number configuration Support work order generator Upload data to remote MySQL server Battery remaining capacity display Provide recording file (*.csv)

For more information, please visit the following website: http://m2m.icpdas.com/GAM-100.html
