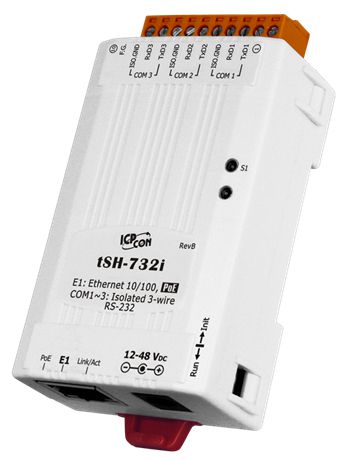

tSH-732i – Tiny Serial Port Converter with PoE and 3 Isolated RS-232 Ports

New Products 2018-06-11

Introduction:

Following the success of the original tGW-700/tDS-700 modules, ICP DAS has continued to develop new functions for these products in order to provide enhanced support for a greater number of applications. The tSH-732i module is a serial port converter that provides many functions, including "Baud Rate Conversion" and "Modbus RTU/ASCII Conversion". The built-in web server provides easy configuration interface, and no console commands are required.

The tSH-732i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protect the modules and equipment from the sudden and momentary electric current.

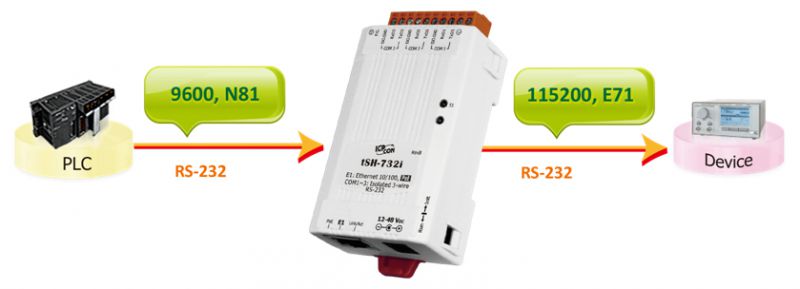

Baud Rate Conversion: This function allows a single master device to communicate with slave devices using different baud rates and data formats. Most query-response protocols (half-duplex), e.g. DCON, are supported in the raw data mode. Full-duplex communication should also work when the data size is smaller than the built-in 512 bytes buffer on each serial port.

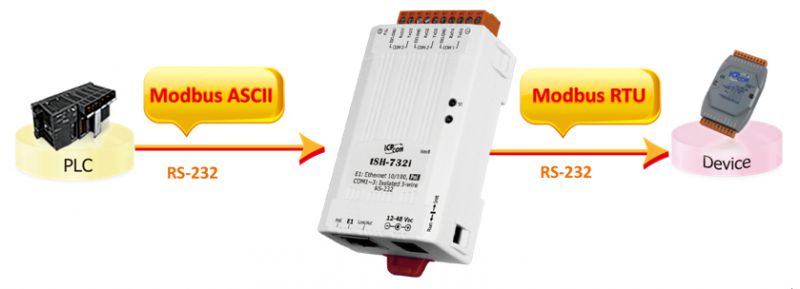

Modbus RTU/ASCII Conversion: This function allows a single Modbus RTU/ASCII master device to communicate with Modbus RTU/ASCII slave devices using different protocols, baud rates and data formats.

Features:
	Supports Baud Rate conversion application Supports Modbus RTU/ASCII protocol conversion Supports two masters sharing one slave port Raw data mode for most query-response protocols Built-in web server for easy configuration (HTTP) Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack Tiny form-factor and low power consumption

	Watchdog Timer Suitable for Use in Harsh Environments 3000 VDC Isolation and +/-4 kV ESD protection

	Includes a eSearch utility for Windows XP/2003/2008/7/8/10 (32/64-bit)

	RoHs compliant & no Halogen

For more information, please visit the tSH-700 series web site.
