VPD-173X/VPD-173X-64 - 7" Touch HMI Device with RS-232/485, USB, Ethernet (PoE), RTC and support XV-board
New Products
2018-07-30
Introduction:

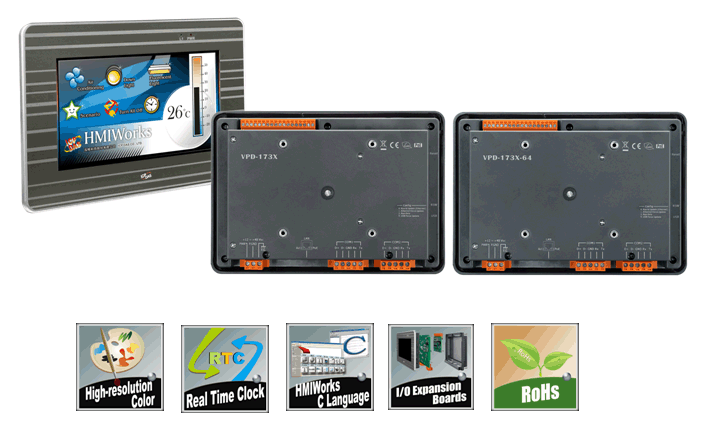

VPD-173X/173X-64 series HMI is designed for building, home and industrial automation. VPD-173X/173X-64 series HMI is equipped with 7" high resolution TFT color touch screen which can be seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.HMIWorks is a free development software for the VPD series HMI devices; it provides Ladder Designer for PLC users, and C language environment for IT users. In general condition, it only takes no more than 30 minutes to learn how to create an application program of VPD-series devices when using Ladder Designer.
Features:
The following is the features comparisons table for the VPD-173X/173X-64 series models:| Model | Memory Expansion | Image Storage Capacity | COM Port | Ethernet | LCD | RTC | I/O Expansion Boards | Ingress Protection | Power Input |
| VPD-173X | 16 MB SDRAM/16 MB Flash | 18 | COM1 : RS-232 or RS-485 COM2: RS-232 or RS-485 |
Ethernet (10/100 Mbps) |
7” TFT (Resolution 800 x 480, 65536 colors) | Yes | Yes | Front Panel: IP65 | +12 ~ 48 VDC or PoE |
| VPD-173X-64 | 64 MB SDRAM/64 MB Flash | 84 |
The following is the I/O expansion board selection guide for the XV-Board series models:
| DIO Expansion | |||||
| Model | DI | DO | |||
| Channel | Type | Sink/Source | Channel | Sink/Source | |
| XV107 | 8 | Wet | Source | 8 | Sink |
| XV107A | 8 | Wet | Sink | 8 | Source |
| XV110 | 16 | Dry/Wet | Sink/Source | - | - |
| XV111 | - | - | - | 16 | Sink |
| XV111A | - | - | - | 16 | Source |
| XV116 | 5 | Wet | Sink/Source | 6 | Power Relay, Form A |
| Multi-Function Expansion | |||||||||
| Model | AI | AO | DI | DO | |||||
| Channel | Range | Channel | Range | Channel | Type | Sink/Source | Channel | Sink/Source | |
| XV306 | 4 | ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA | - | - | 4 | Wet | Sink/Source | 4 | Relay, FormA, 6A |
| XV307 | - | - | 2 | 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA~ +20 mA, +4 mA ~ +20 mA | |||||
| XV308 | 8 | ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA | - | - | DI+DO=8 | Dry/Wet | Source | DI+DO=8 | Sink |
| XV310 | 4 | 2 | 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA~ +20 mA, +4 mA ~ +20 mA | 4 | Dry/Wet | Source | 4 | Source | |
For more information, please visit the VPD-173X/173X-64 web site.
