DL-302-IP65/DL-303-IP65 – CO/CO2/Temperature/Humidity/Dew Point Data Logger
New Products
2018-10-04

Introduction:
The DL-300 series of Data Logger devices can be used to record CO, CO2, Temperature, Humidity and Dew Point information (with date and time stamps included), and are able to store up to 450,000 downloadable records.
Real-time data can be accessed from the DL-300 Data Logger from anywhere and at any time by using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger.
Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT(Internet of Things) connectivity protocol - MQTT. The DL-300 Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.

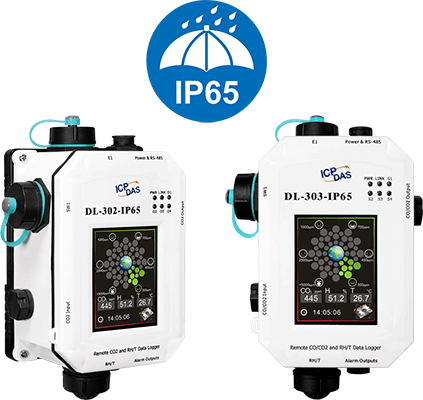

The IP65 version of DL series is designed for industrial applications in harsh environments that provides IP65 grade protection approval . The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.
Real-time data can be accessed from the DL-300 Data Logger from anywhere and at any time by using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger.
Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT(Internet of Things) connectivity protocol - MQTT. The DL-300 Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.
The IP65 version of DL series is designed for industrial applications in harsh environments that provides IP65 grade protection approval . The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.
Application:

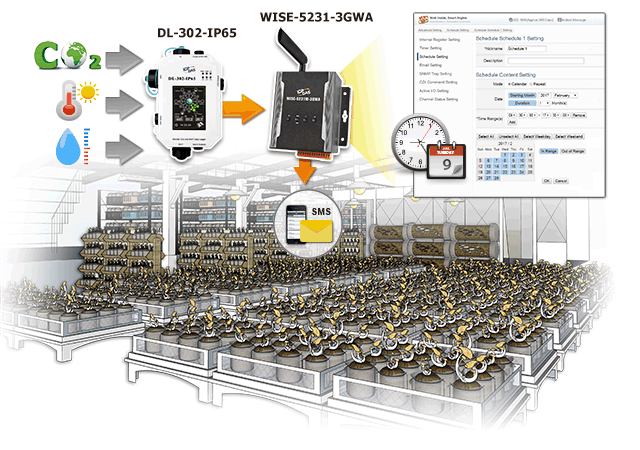

Mushroom FarmMushroom cultivation requires long-term monitoring the environment of CO2 concentration, temperature and humidity values , and its growth environment is high humidity condition. A general equipment cannot work in such environment, but the DL-302-IP65 can be used to record CO2, temperature, humidity and dew point information with date and time stamps in the operating temperature from -20°C to +50°C, and are able to store up to 450,000 downloadable records . The WISE-5231-3GWA features timer and schedule functions. It allows user to schedule specific date or time for control logic execution, or perform specific tasks such as time delay. With calendar user interface provided, schedule setting can be more efficient and flexible. It does not require programming; with a few simple settings will be able to achieve functions such as farm production control, quality control, production resume ... and so on.

Features: |
|
|
|
DL-300-IP65 series comparison table
| DL-302-IP65 | DL-303-IP65 | |
| CO Measurement | - | 0 to 1000 ppm |
| CO2 Measurement | 0 to 9999 ppm (NDIR) | |
| Temperature Measurement | -10 to +50°C | |
| Relative Humidity Measurement | 0 to 100% RH | |
| Dew Point | Calculated using temperature and relative humidity | |
| Data Logger | Up to 450,000 time-stamped records | |
Ordering Information:
| Model | Description | |
| DL-302-IP65 CR | Remote CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RoHS) | |
| DL-303-IP65 CR | Remote CO/CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RoHS) | |
For more information, please refer to
DL-302-IP65: https://www.icpdas.com/en/product/DL-302-IP65
DL-303-IP65: https://www.icpdas.com/en/product/DL-303-IP65
