Introduction:

Modbus is one of the popular protocols in industry. Therefore, there are many communicating translation applications for both Modbus master and Modbus slave. Previously ICP DAS CAN converter series products only have Modbus slave to CAN devices solution such as I-7530A-MR and I-7540D-MTCP.Now in order to provide customers with more comprehensive functions to implement Modbus applications; we add Modbus master to the I-7530A-MR. I-7530A-MR allows the exchange of information between Modbus master and CAN via sending Modbus commands. It helps to access Modbus slave devices automatically and continuously. When it gets I/O data from Modbus slave devices, it will store them in the data field of the CAN message and actively or passively transmit the data to CAN bus. This new function also provides error response mechanism. It helps to detect Modbus Error via CAN bus.




Features:

• Supports Modbus function code 01, 02, 03, 04, 05, 06, 15 and 16.
• Exchanges the data with Modbus slave devices automatically.
• Active/Passive response I/O data to the CAN Bus.
• Allows to response Modbus communication status to the CAN Bus.
• Provides utility tool for communication Configuration.

The new firmware can be freely downloaded from the following link.
https://www.icpdas.com/en/download/show.php?num=950&model=I-7530A-MR-G


Communication Methods:

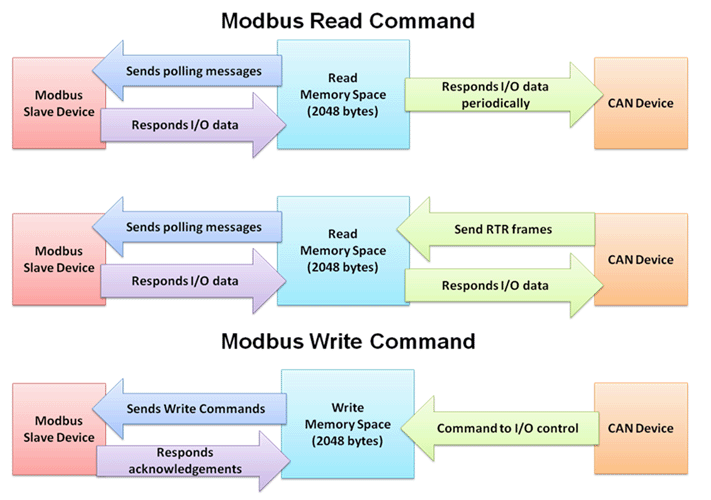

In order to implement the Modbus master function, we use two memory spaces for exchange of I/O data between Modbus and CAN side. Both of them are 2048 bytes.




Applications:

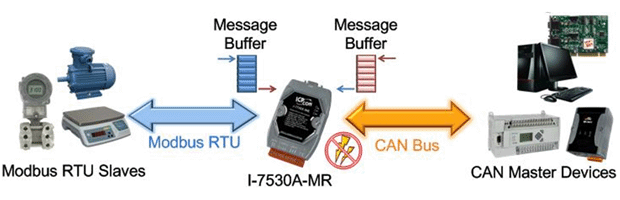

Users can easily get status from remote Modbus devices and control them via CAN bus by using Modbus master function.





Utility:

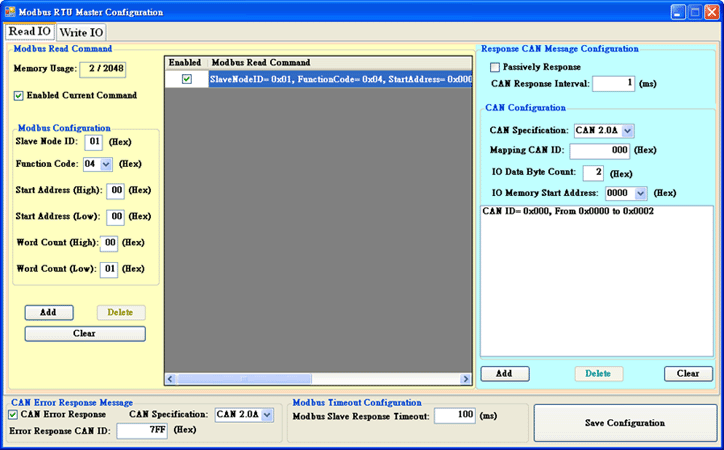

We provide friendly operation interface for setting Modbus commands.




• Sets Modbus read/write commands for accessing slave devices.
• Sets parameters for responding I/O data via CAN bus.
• Sets parameters for responding error messages via CAN bus.
• Sets Modbus slave timeout time.
