Lighting and Air Conditioning Management System in Hospital
Product Update
2016-11-28
ICP DAS TouchPAD features all-in-one functions such as quick deployment, rapid integration, easy maintenance and display. It reduces the cost of PLC and HMI yet provides similar or even more convenient features. Using ICP DAS TouchPAD (TPD) to control the devices and function as communication interface; TPD can work as a controller with a display function which adds more values and upgrades the competitiveness in project implementation.
SC-4104-W1 module provides three types of built-in control logic: each type provides three interlocking control functions. The user can freely switch in functions to quickly build and design appropriate applications.
Introduction
In most of the temperature control applications, normally use one master control panel to work with more than one control boxes. However, the master control panel can only communicate with the control boxes connected under its architecture. When adding new sensors or modules to the system for the new requirement, it is required to design a new architecture. In comparison, if users choose TPD-283U, our driver allows adding new modules no limit in anytime, no matter via communication interfaces such as RS-485 serial communication device or Ethernet, which provides a friendly and easy solution to the maintenance staff.Description

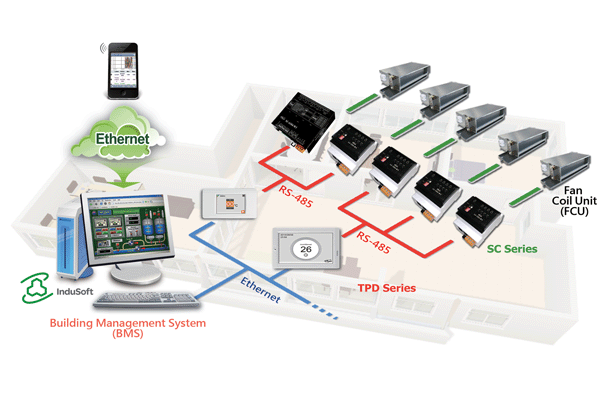

This application is to implement lighting control system for sickrooms in a local hospital, and we transform traditional control system to smart building automation control system. The following devices are the major devices used in the applications:SC-4104-W1
The SC-4104-W1 is perfect to be used in Fan Coil Unit and indoor lighting control. It built-in logic to switch different scenarios easily. A variety of scenarios interlocking reactions, provide users switch to their desired fan speed and lighting intensity.
LC-101
Lighting control in the sickrooms and walkway.
TPD-283U
TPD-283U is 2.8 inch HMI and designed for data acquisition. And it seamlessly integrates with the SCADA software (InduSoft). Unlike traditional control panel, TPD-283U features more functions as below:
1. Built-in DCON/Modbus Protocol, which allows communicating with the devices use same protocol; unlike the general control panel which can only control few devices.
2. More flexible built-in C/ladder language, it also can work as a Gateway for different devices.
3. Features: one RS-485 serial communication interface and one Ethernet interface. In this application, it performs data acquisition from the lower modules and then transmits the data to the central monitoring software via the Ethernet.
The TPD-283U and SC-4104-W1 provide wide range options for used in different applications, in addition to the interlocking control, more control functions can see as below:
1. Cooling Control
2. Heating Control
3. Alarm Control
1. Built-in DCON/Modbus Protocol, which allows communicating with the devices use same protocol; unlike the general control panel which can only control few devices.
2. More flexible built-in C/ladder language, it also can work as a Gateway for different devices.
3. Features: one RS-485 serial communication interface and one Ethernet interface. In this application, it performs data acquisition from the lower modules and then transmits the data to the central monitoring software via the Ethernet.
The TPD-283U and SC-4104-W1 provide wide range options for used in different applications, in addition to the interlocking control, more control functions can see as below:
1. Cooling Control
2. Heating Control
3. Alarm Control
In this application, the TPD replaces the former controller and display, and the SC-4104-W1 is used to change the lighting control and Fan Coil Unit. This cost-effective and easy-to-use solution provides competitiveness in project implementation.
