VPD-132, VPD-132N
EOL
2017-09-06
EOL notification date: 2017/09/06
Phased out model: VPD-132, VPD-132N
Last Order Date: 2017/09/06
Dear Partners,
ICP DAS hereby formally announces the manufacturing discontinue and End of Life (EOL) of VPD-132 and VPD-132N.
Within the effective warranty period, ICP DAS is committed to continue providing comprehensive after-sales service and technical support.
● Reason for termination: Phase out of MCU
● Suggested replacement device: VPD-132-H, VPD-132N-H
- Status: Available
- Please refer to the following table for cross reference information.
Migrate projects from VPD-132/132N to VPD-132-H/132N-H:
1. Open original project by using HMIWorks v2.10.21 or last version.
2. Click the HMIWorks menu item "Project/Project Configuration".
3. Click the "General" page.
4. Change the "TouchPAD Type" to VPD-132-H.
5. Click "OK" button.
If your original project uses Ladder program, and is created by HMIWorks v2.09.09 or older versions, please follow the steps 6 - 8 to disable the new Ladder mode.
New ladder mode: The Coil-Set and Coil-Reset change the coil state and lock it (industrial standard) until reset or set. Other coil operations will not unlock or change it.
Old ladder mode: There is no lock feature.
6. Click the "Others" page.
7. Unchecked the "Use New Ladder Implementation” item in the “Ladder” pane.
8. Click "OK" button.
9. Click the HMIWorks menu item "Run/Build (Render, Compile)" to rebuild project or press F5.
For more information, please visit the link below:
https://www.icpdas.com/en/product/guide+Panel__Products+TouchPAD+TPD__Series#884
Phased out model: VPD-132, VPD-132N
Last Order Date: 2017/09/06
Dear Partners,
ICP DAS hereby formally announces the manufacturing discontinue and End of Life (EOL) of VPD-132 and VPD-132N.
Within the effective warranty period, ICP DAS is committed to continue providing comprehensive after-sales service and technical support.
● Reason for termination: Phase out of MCU
● Suggested replacement device: VPD-132-H, VPD-132N-H
- Status: Available
- Please refer to the following table for cross reference information.
| Model Name | VPD-132 | VPD-132N | VPD-132-H | VPD-132N-H | |
| Product Status | Phased out | Available | |||
| CPU | 32-bit RISC CPU | 32-bit RISC CPU | |||
| Memory Expansion | 16 MB SDRAM/8 MB Flash | 16 MB SDRAM/16 MB Flash | |||
| Real Time Clock (RTC) | Yes | Yes | |||
| Buzzer | Yes | Yes | |||
| Rotary Switch (0~9) | Yes | Yes | |||
| LCD | 3.5 TFT (Resolution 240 x 320 x 16) |
3.5 TFT (Resolution 240 x 320 x 16) |
|||
| Serial Port | COM1 | RS-485(including Self-Tuner) +RS-232 | RS-485(including Self-Tuner) +RS-232 | ||
| COM2 | RS-485 (including Self-Tuner) | RS-485 (including Self-Tuner) | |||
| Firmware updates | USB 1.1 Client | USB 1.1 Client | |||
| I/O Expansion Bus | Yes | Yes | |||
| Rubber Keypad | 5 keys (Programmable) | - | 5 keys (Programmable) | - | |
| Reset Button | Yes | Yes | |||
| Power Input | +12 ~ 48 VDC | +12 ~ 48 VDC | |||
Migrate projects from VPD-132/132N to VPD-132-H/132N-H:
1. Open original project by using HMIWorks v2.10.21 or last version.

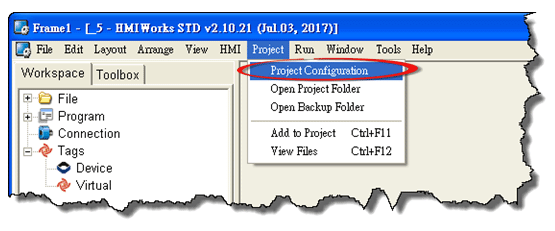

2. Click the HMIWorks menu item "Project/Project Configuration".

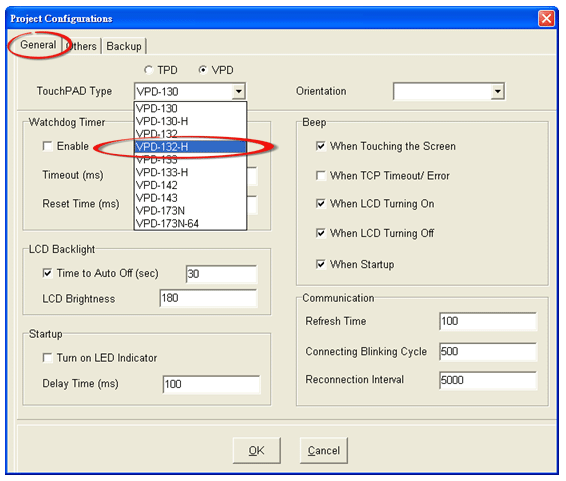

3. Click the "General" page.
4. Change the "TouchPAD Type" to VPD-132-H.
5. Click "OK" button.
If your original project uses Ladder program, and is created by HMIWorks v2.09.09 or older versions, please follow the steps 6 - 8 to disable the new Ladder mode.
New ladder mode: The Coil-Set and Coil-Reset change the coil state and lock it (industrial standard) until reset or set. Other coil operations will not unlock or change it.
Old ladder mode: There is no lock feature.

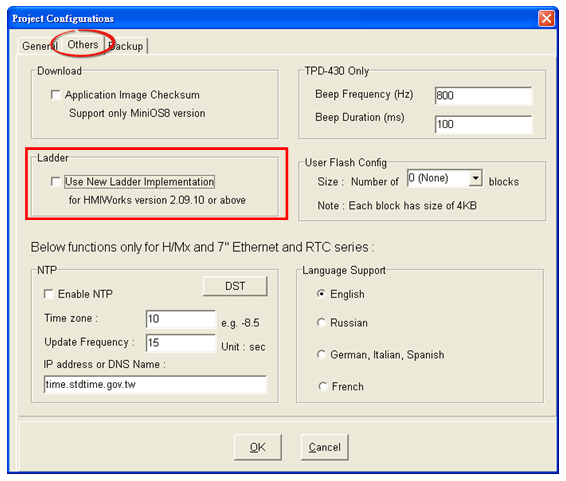

6. Click the "Others" page.
7. Unchecked the "Use New Ladder Implementation” item in the “Ladder” pane.
8. Click "OK" button.

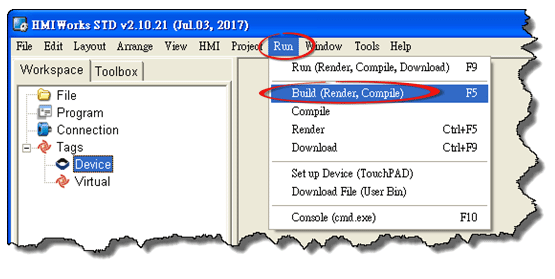

9. Click the HMIWorks menu item "Run/Build (Render, Compile)" to rebuild project or press F5.
For more information, please visit the link below:
https://www.icpdas.com/en/product/guide+Panel__Products+TouchPAD+TPD__Series#884
