home > product> solutions > remote i/o modules/units > Smart Control > SC-6104-W5 > SC-6104-W5 Hardware

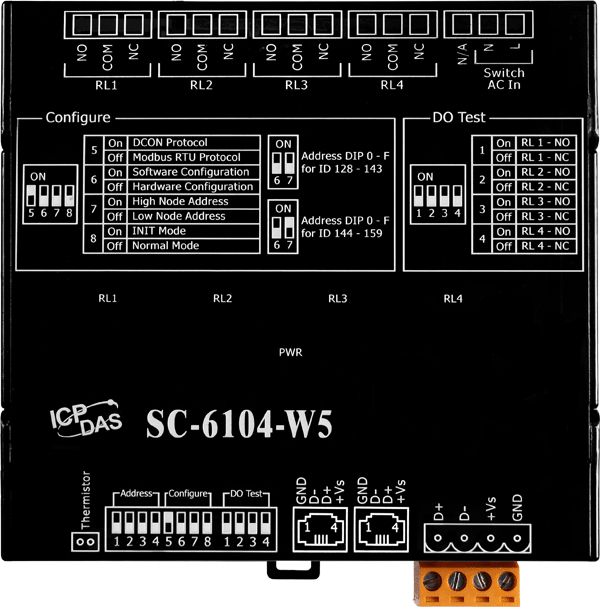

PIN Assignment

RJ11 Pin Assignment
Pin Descriptions
1 NC None Connect
2 GND Ground
3 DATA- RS-485 Interface (D-)
4 DATA+ RS-485 Interface (D+)
5 +VS Power Input (+10 ~ +30 VDC)
6 NC None Connect

Terminal Block Assignment
Pin Descriptions
1 DATA+ RS-485 Interface (D+)
2 DATA- RS-485 Interface (D-)
3 +VS Power Input (+10 ~ +30 VDC)
4 GND Ground

TOP | HOME
Wire Connection
DIO Wire Connections

TOP | HOME
