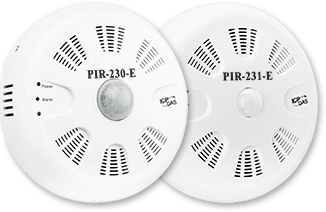

PIR-230-E/PIR-230-BLE/PIR-230-WF
PIR-231-E/PIR-231-BLE/PIR-231-WF
Motion, Temperature, and Humidity Sensor Module |
|
| |
| |
 |
Model: PIR-230-E/PIR-230-BLE/PIR-230-WF
PIR-231-E/PIR-231-BLE/PIR-231-WF |
|
|
 |
- Adjustable Time-Delay / Lux / Sensitivity (Lux/Sensitivity PIR-230 Only)
- Internal Photosensor for Smart Switch Control
- LED Indicator for PIR/Temperature Sensor
- Temperature Sensor for Measuring Room Temperature
- Suitable as either Temperature or Fire Alarm
- Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
- Suitable for loads up to 1500 W (Incandescent) and 300 W (Fluorescent)
- Fluorescent (T8) Loading Capability
- Wide range of Communication Interfaces and Protocols
- Compatible with IEEE802.11b/g/n standards (PIR-230/PIR-231 Only)
- Support infrastructure and limit-AP modes for wireless networks (PIR-230-WF/PIR-231-WF Only)

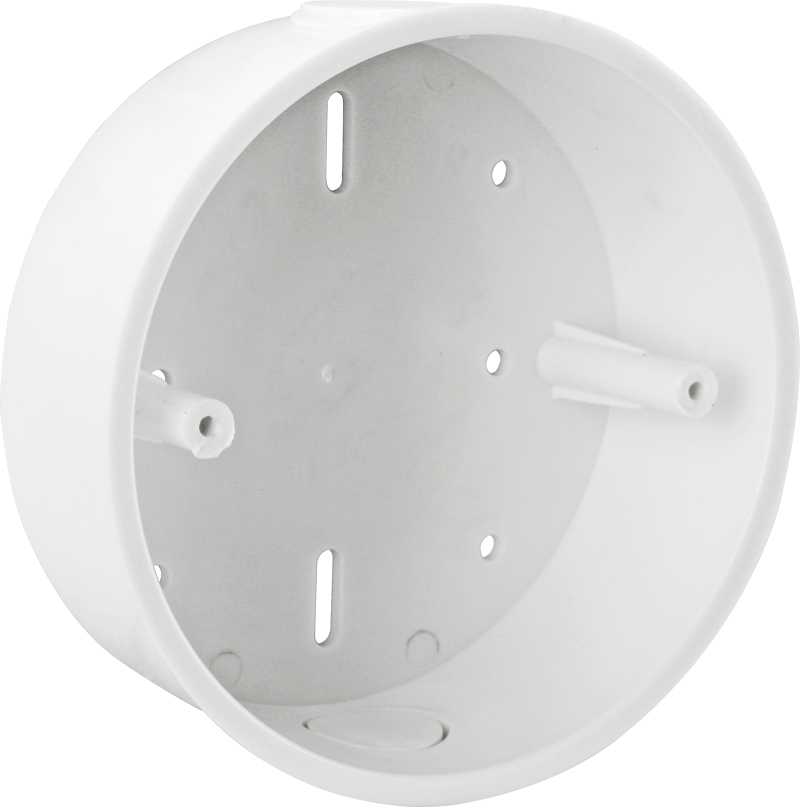

- Ceiling or Surface-Mount Design
|
|
|
| |
 |

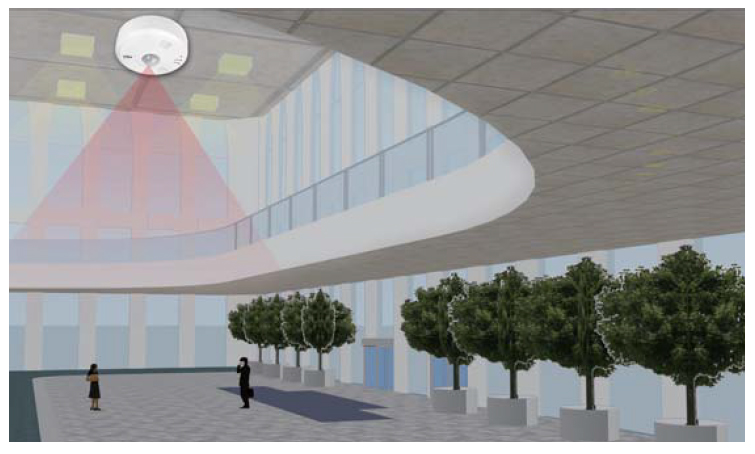

PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.
The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration. |
| |
 |

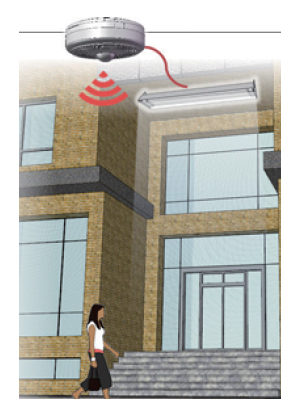

- Lighting and exhaust fans in public toilets
- Common lighting in staircases
- Lighting in parking areas
- Garden lights
- Lighting for changing rooms in shops
- Corridor lighting, and many more situations
|
 |
 |
|
| |
 |
| Model |
PIR-230-E |
PIR-230-BLE |
PIR-230-WF |
PIR-231-E |
PIR-231-BLE |
PIR-231-WF |
| Motion and Occupancy Sensor |
| Delay Time |
Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194 |
| Lux Control Level |
Hardware: 2 mode (Dawn and dust) / Software: 5-step |
- |
| Height Detection |
4 m Max. |
10 m Max. |
| Motion Detection Field of View |
360°; 8 m Diameter Max. |
| Occupancy Detection Field of View |
- |
| PIR Response Time |
1 second |
| Temperature Sensor |
| Measurement Range |
-40 to +120°C |
| Fire Alarm |
65°C (Programmable) |
| Resolution |
0.01°C |
| Accuracy |
±0.5°C (at 0 to 60°C) |
| Relative Humidity Measurement |
| Range |
0 to 100% RH |
| Resolution |
0.01% RH |
| Accuracy |
±5% RH |
| Digital Input |
| Channels |
2 |
| Type |
Wet |
| On Voltage Level |
70 to 220 VAC |
| Off Voltage Level |
20 VAC Max. |
| Input Impedance |
68 KΩ, 1 W |
| Relay Output |
| Channels |
1 |
| Type |
Power Relay, Form C |
| Max. Load Current |
NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC |
| Load Wattage |
Incandescent Bulb: 1500 W Max.; Fluorescent Lamp: 300 W Max. |
| Communication |
| Node Address |
Hardware: 160 to 191 / Software: 1 to 255 |
| Protocol |
DCON, Modbus RTU, Modbus TCP |
| Wire Interface |
Yes, RS-485 X 1 and Ethernet/PoE X1 |
| Wireless Interface |
- |
Bluetooth |
Wi-Fi |
- |
Bluetooth |
Wi-Fi |
| Standard Supported |
- |
BT 4.0 |
IEEE 802.11 b/g/n |
- |
BT 4.0 |
IEEE 802.11 b/g/n |
| Wireless Mode |
- |
Slave |
Infrastructure/
Limited AP |
- |
Slave |
Infrastructure/
Limited AP |
| Wireless Security |
- |
AES 128 |
WEP, WPA ,WPA2 |
- |
AES 128 |
WEP, WPA ,WPA2 |
| Transmission Range |
- |
20 m (LOS) |
50 m (LOS) |
- |
20 m (LOS) |
50 m (LOS) |
| LED Indicators |
| LED Indicators |
Yes,1 as Power/Communication Indicator. 1 as Alarm Indicator. |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal, ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| Power Requirements |
| Power supply |
18 to 48 VDC, PoE |
| Reverse Polarity Protection |
Yes |
| Power Consumption |
2 W |
2.5 W |
3 W |
2 W |
2.5 W |
3 W |
| Mechanical |
| Installation |
Ceiling /surface mounted |
| Protection Class |
IP20 |
| Dimensions (D x H) |
Ø 150 mm x 53 mm |
| Environment |
| Operating Temperature |
0 to +35°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 90% RH, Non-condensing |
|
| |
 |
| PIR-230-E ~ NEW ~ |
PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (Ethernet) |
| PIR-230-BLE ~ Available soon ~ |
PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (Bluetooth) |
| PIR-230-WF ~ NEW ~ |
PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (WiFi) |
| PIR-231-E ~ NEW ~ |
PIR Motion Sensor (10 m), Temperature and Humidity Sensor Module (Ethernet) |
| PIR-231-BLE ~ Available soon ~ |
PIR Motion Sensor (10 m), Temperature and Humidity Sensor Module (Bluetooth) |
| PIR-231-WF ~ Available soon ~ |
PIR Motion Sensor (10 m), Temperature and Humidity Sensor Module (WiFi) |
|
| |
 |
|
| |
| |
|
|
| |
|
|
