home > product> solutions > remote i/o modules/units > M-6000 > M-6088-32

M-6088-32
32-channel PWM Output Module

~ Available soon ~

Model: M-6088-32

  • 32-channel PWM Output
  • Burst Mode and Continuous Mode for PWM Output
  • Software Trigger Mode for PWM Output
  • Individual and Synchronous PWM Output
  • 4 kV ESD and EFT Protection
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 to +75°C

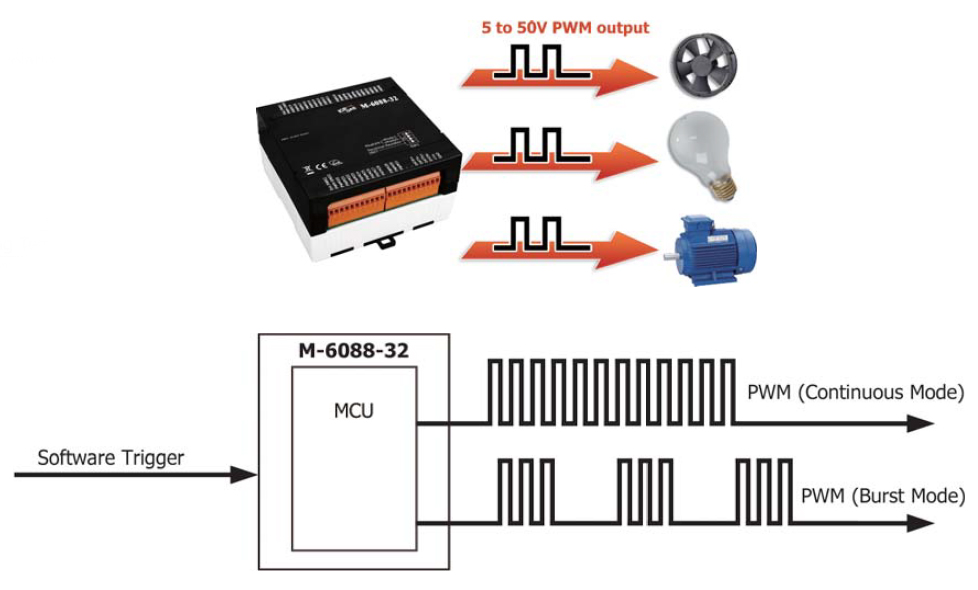

The M-6088-32 provides 32-channel PWM (Pulse Width Modulation) Output, and can be used to develop powerful and cost-eff ective analog control systems. PWM is a powerful technique for controlling analog circuits that uses the Digital Output to generate a waveform with a variable duty cycle and frequency which can then be used to control an analog circuit in applications such as controlling the position or speed of motors, the brightness of lamps, or the speed of fans, etc. Either burst mode or continuous mode can be used for the PWM output depending on the application. It supports both the Modbus RTU and the DCON protocols, and External PWR allows the load voltage to be increased from +3.5 to +50 V for the 32-channels PWM (Pulse Width Modulation) output.

  • Heating system in buildings
  • Ventilation system
  • Controlling Fan Speed

PWM Output
Channels 32
Type PWM, TTL
Sink/Source (NPN/PNP) Sink
Load Voltage +5 ~ +50 VDC
Max. Load Current Sink +50 VDC @ 200 mA/Channel
Source -
PWM Frequency 50 Hz
Duty Cycle 0.1 to 99.9%
Mode Burst, Continuous
Burst Count 1 to 65535
Trigger Start Software
Power-on Value -
Safe Value -

Communication
Interface RS-485
Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
Format (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1)
Baud Rate 1200 to 115200 bps
Protocol Modbus RTU, DCON
Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators/Display
System LED Indicator Yes, 1 as Power/Communication Indicator
Mode Status Mode0, Mode1
Isolation
Intra-module Isolation, Field-to-Logic 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
EFT (IEC 61000-4-4) ±4 kV to Power
Surge (IEC 61000-4-5) -
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +48 VDC
Consumption 2.9 W
Mechanical
Dimensions (W x L x H) 116 mm x 120 mm x 64 mm
Environment
Operating Temperature -25 to +75°C
Storage Temperature -40 to +80°C
Relative Humidity 10 to 95% RH, Non-condensing

M-6088-32 CR 32-channel PWM Output Module using the DCON and Modbus Protocols (RoHS)

tM-7520U CR RS-232 to RS-485 converter (RoHS)
tM-7561 CR USB to RS-485 converter (RoHS)
tM-SG4 CR RS-485 Bias and Termination Resistor Module (RoHS)
I-7514U CR 4-channel RS-485 Hub (RoHS)
SG-770 CR 7-channel Diff erential or 14-channel Single-ended Surge Protector (RoHS)
