M-7068(D)/M-7069(D)
4-channel Form A Relay Output and 4-channel Form C Relay Output Module |
|
| |
| ~ NEW ~ |
|
 |
 |

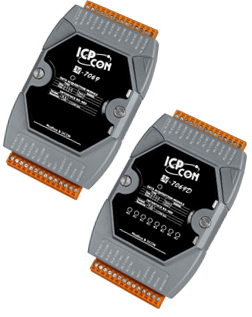

| Model: M-7068(D) |
Model: M-7069(D) |
|
|
 |
- M-7068(D)
- 4 Form A and 4 Form C Signal Relay Output
- 2000 VDC Intra-module Isolation
- M-7069(D)
- 4 Form A and 4 Form C Power Relay Output
- 3750 VDC Intra-module Isolation
- Dual Watchdog
- 4 kV ESD Protection
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Wide Operating Temperature Range: -25 ~ +75°C
|
|
|
| |
 |
The M-7068 provides 4 Form A signal relay output channels and 4 Form C signal relay output channels, while the M-7069 provides 4 Form A power relay output channels and 4 Form C power relay output channels. Both include 8 LED indicators that can be used to monitor the relay output status, and options are provided that allow power-on and safe digital output values to be configured. 4 kV ESD, 4 kV EFT and 3 kV surge protection are also provided to enhance noise protection capabilities in industrial environments. The M-7068 is the ideal solution for small signal switching, while the M-7069 is the ideal solution for high power applications.
|
| |
 |
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
|
| |
 |
| Model |
M-7068 |
M-7068D |
M-7069 |
M-7069D |
| Relay Output |
| Channels |
8 (Form A × 4, Form C × 4) |
| Relay Type |
Signal Relay |
Power Relay |
| Form A |
Contact Rating |
2 A @ 30 VDC
0.24 A @ 220 VDC
0.25 A @ 250 VAC |
6 A @ 35 VDC
6 A @ 240 VAC |
| Min. Contact Load |
10 mA @ 20 mV |
100 mA @≧ 12 V |
| Contact Material |
Silver Nickel, Gold-covered |
Silver Cadmium Alloy |
| Operate Time |
3 ms (typical) |
5 ms (typical) |
| Release Time |
4 ms (typical) |
1 ms (typical) |
| Mechanical Endurance |
108 ops |
30 X 106 ops |
| Electrical Endurance |
2 X 105 ops |
1 X 105 ops |
| Form C |
Contact Rating |
2 A @ 30 VDC
0.24 A @ 220 VDC
0.25 A @ 250 VAC |
5 A @ 30 VDC
5 A @ 250 VAC |
| Min. Contact Load |
10 mA @ 20 mV |
100 mA @≧ 12 V |
| Contact Material |
Silver Nickel, Gold-covered |
Silver Nickel Alloy |
| Operate Time |
3 ms (typical) |
5 ms (typical) |
| Release Time |
4 ms (typical) |
2 ms (typical) |
| Mechanical Endurance |
108 ops |
15 X 106 ops |
| Electrical Endurance |
2 X 105 ops |
1 X 105 ops |
| Surge Strength |
2000 VDC |
4000 VDC |
| Power-on Value |
Yes |
| Safe Value |
Yes |
|
| |
 |
| Model |
M-7068 |
M-7068D |
M-7069 |
M-7069D |
| Communication |
| Interface |
RS-485 |
| Bias Resistor |
No (Usually supplied by the RS-485 Master. Alternatively,
add a tM-SG4 or SG-785.) |
| Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
| Baud Rate |
1200 ~ 115200 bps |
| Protocol |
Modbus RTU, DCON |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicator/Display |
| System LED Indicator |
Yes, 1 LED as Power/Communication Indicator |
| I/O LED Indicator |
- |
Yes, 8 LEDs as Relay Output
Indicators |
- |
Yes,8 LED as Relay Output Indicator |
| 7-Segment LED Display |
- |
| Isolation |
| Intra-module Isolation, Field-to-Logic |
2000 VDC |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for 8 Relay and Power Line
±2 kV for RS-485 Port Line |
| Surge (IEC 61000-4-5) |
±3 kV for Power |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
10 ~ 30 VDC |
| Consumption |
1.6 W (Max.) |
2.0 W (Max.) |
2.1 W (Max.) |
2.5 W (Max.) |
| Mechanical |
| Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +85°C |
| Humidity |
10 ~ 95% RH, Non-condensing |
|
| |
 |
| M-7068-G CR |
4-channel Form A Signal Relay Output and 4-channel Form C Signal Relay Output Module (Gray Cover) (RoHS) |
| M-7068D-G CR |
M-7068 with LED Display (Gray Cover) (RoHS) |
| M-7069-G CR |
4-channel Form A Power Relay Output and 4-channel Form C Power Relay Output Module (Gray Cover) (RoHS) |
| M-7069D-G CR |
M-7069 with LED Display (Gray Cover) (RoHS) |
|
| |
 |
| tM-7520U CR |
RS-232 to RS-485 Converter (RoHS) |
| tM-7561 CR |
USB to RS-485 Converter (RoHS) |
| I-7514U CR |
4-channel RS-485 Hub (RoHS) |
| SG-3000 series |
Signal Conditioning Modules for Thermocouple, RTD, DC Voltage, DC Current and Power Input transformers |
|
| |
|
|
| |
|
|
