M-7004
4-port Digital Temperature Sensor Module with Daisy-Chain Wiring

~ NEW ~
  • 4-Port DS18B20 Sensor Input Module
  • 2/3-wire DS18B20 Wire Connection
  • Max 20 Sensors per Port
  • Max. Distance of 100 m per Port when using Daisy-Chain Wiring
  • Measures Temperatures from -55 to +125°C
  • ±0.5°C Accuracy from -10 to +85°C
  • 4 kV ESD Protection
  • 3000 VDC Intra-module Isolation, Field to Logic
  • RoHS Compliant
  • Wide Operating Temperature Range: -25 to +75°C

Model: M-7004

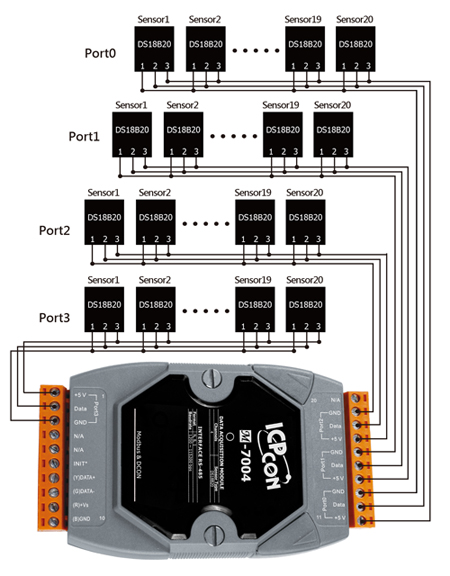

The M-7004 is a digital temperature sensor module that provides four ports for 2- or 3 wire DS18B20 digital temperature sensor input. The DS18B20 temperature sensor has a high accuracy of ±0.5°C when measuring temperatures between -10 and + 85°C, with a total measurement range of between -55 and +125°C. Up to 20 DS18B20 sensors can be connected to each port on the M-7004 module in a daisy-chain arrangement with a maximum wiring distance of 100 meters. The M-7004 module is fully RoHS compliant, and features 4 kV ESD protection as well as 3000 VDC intra-module isolation.

  • Temperature Measurement
  • Environment Monitoring
  • Tunnel Monitoring
  • Building Monitoring

Analog Input
Channel 4
Wiring 2-wire or 3-wire
Sensor Type DS18B20
Temperature Measurement Range -55°C to +125°C
Resolution 12-bit
Accuracy ±0.5°C (See Note 1)
Sampling Rate 1 Hz
Number of Sensors per Port 20
Sensor Wiring Length Max. 100 m per Port
Note :1 ±0.5°C Accuracy from -10°C to +85°C
Communication
Interface RS-485
Bias Resistor Yes, 1k Ω bias resistor by Jumper selectable
Format N81, N82, E81, O81
Baud Rate 1200 to 115200 bps
Protocol DCON Modbus/RTU
Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicator/Display
System LED Indicator Yes, 1 LED as Power/Communication Indicator
I/O LED Indicator -
Isolation
Intra-Module Isolation, Field-to-Logic 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
EFT (IEC 61000-4-4) ±4 kV for Power
Surge (IEC 61000-4-5) ±2 kV for power liner
Power
Reverse Polarity Protection Yes
Input Voltage Range +10 ~ +48 VDC
Consumption 0.5 W
Mechanical
Dimensions (W x L x H) 123 mm x 72 mm x 35 mm
Installation DIN-Rail
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

M-7004-G CR 4- Port Digital Temperature Sensor Module with Daisy-Chain Wiring using the DCON and Modbus Protocols (Gray Cover) (RoHS)

tM-7520U CR RS-232 to RS-485 converter (RoHS)
