home > product> solutions > remote i/o modules/units > DL Series > DL-100-E/DL-100-E-W/DL-101-E/DL-101-E-W

DL-100-E/DL-100-E-W/DL-101-E/DL-101-E-W

~ NEW ~ ~ NEW ~
Model: DL-100-E
Model: DL-100-E-W

~ NEW ~ ~ NEW ~
Model: DL-101-E
Model: DL-101-E-W

  • Measurement Range: -20 to +60°C and 0 to 100% RH
  • LCD Display Shows Temperature, Humidity, Relative Humidity, Date and Time
  • Able to store up to 600,000 records with date and time stamps
  • Free Software Utility, iOS APP and Android App Included
  • Supports the Modbus TCP and MQTT Protocols
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input (DL-101-E Only)
  • PhotoMOS Relay Output for Alarm Devices or IAQ Device Control (DL-101-E Only)
  • Supports Web Configuration and Firmware Update via Ethernet
  • IP 66 Protection Approval
  • DIN-Rail or Wall Mounted

The DL-100-E/DL-101-E series of Data Logger devices can be used to record temperature, humidity and dew point information, including the date and time stamps for each record, with up to 600,000 downloadable records able to be stored. Real-time data can be accessed from the DL-100-E/DL-101-E Data Logger from anywhere and at any time using the free Windows software, the iOS App, or the Android App, as long as it is connected to the same local network as the Data Logger. The DL-100-E/DL-101-E Data Logger supports popular industrial protocols such as Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol – MQTT. The DL-100-E/DL-101-E Data Logger can be connected using a range of communication interfaces including Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring easy maintenance in a distributed control system.

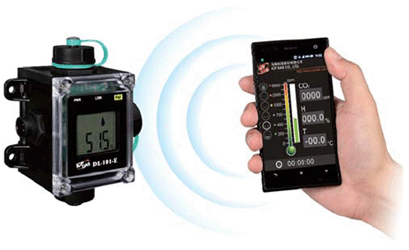

Multi-platform Remote Access Software
Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as it is connected to the same local network as the Data Logger.

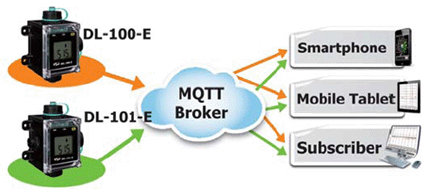

  Supports the MQTT Protocol for IoT Applications


Free and Powerful DL300 Utility
The DL300 Utility can be used to configure the modules, monitor real-time data, or group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.


  • Transportation of food or pharmaceuticals
  • Food and beverage industry (HACCP)
  • Blood stations, pharmacies

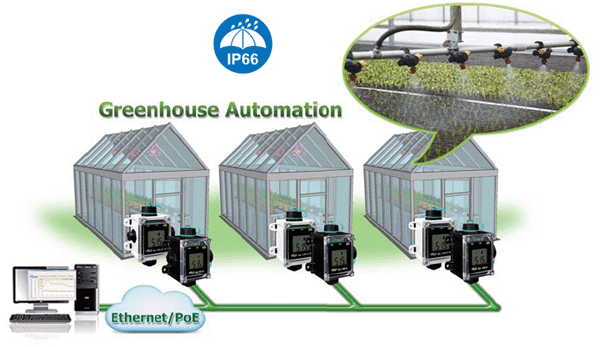

  • Building and energy management
  • Museums, archives, galleries
  • Warehouses

Models DL-100-E DL-100-E-W DL-101-E DL-101-E-W
Temperature Sensor
Measuring Range -20 to +60°C (-31 to +176˚F)
Resolution 0.1°C
Accuracy ±0.4°C
Humidity Sensor
Measuring Range 0 ~ 100% RH
Resolution 0.1% RH
Accuracy ±3% RH @ 20 to 80% RH
LCD and LED Display
LCD Information Displayed Temperature (°C and °F), Humidity (RH), Relative Humidity, Date and Time
PWR System indicator (Green)
Link Link/Act indicator (Green)
PoE PoE indicator (Red)
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
PoE Yes, (IEEE 802.3af, Class 1)
Protocol Modbus TCP, MQTT
Security Password and IP Filter
Dual Watchdog Yes, Module, Communication (Programmable)
System
Real-time Clock Yes
Data Logger Yes, 600,000 Records
PhotoMOS Relay Output - Form Ax2, SPST 100 VDC @ 1 A
Electrical
Powered from Terminal Block - +12 to +48 VDC
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Power Consumption PoE 0.7 W (Max.) 0.7 W (Max.)
Non-PoE - 0.6 W (Max.)
Mechanical
Dimensions (W x L x H) 92 mm x 133 mm x 56 mm 100 mm x 133 mm x 56 mm
Waterproof Level IP66
Installation DIN-Rail; Wall mounted
Environment
Operating Temperature -20 to +60˚C
Storage Temperature -30 to +80˚C
Ambient Relative Humidity 5 to 95% RH, Non-condensing

DL-100-E CR Remote Temperature and Humidity Data Logger with LCD Display (Black Cover) (RoHS)
DL-101-E CR Remote Temperature/Humidity/Dew Point Data Logger with Safety Alarm (Black Cover) (RoHS)
DL-100-E-W CR DL-100-E-W (White Cover) (RoHS)
DL-101-E-W CR DL-101-E-W (White Cover) (RoHS)

NS-205-IP67 CR Industrial 5-port unmanaged IP67 Ethernet switch
Includes IP67 RJ45 Plug x 5, IP67 Power Plug x 1, Cap with Tether x 5 (RoHS)
NS-205PSE-IP67 CR Industrial 5-port unmanaged IP67 Ethernet switch with PoE
Includes IP67 RJ45 Plug x 5, IP67 Power Plug x 1, Cap with Tether x 5 (RoHS)
NS-208PSE-IP67 CR Industrial 8-port unmanaged IP67 Ethernet switch with PoE
Includes IP67 RJ-45 Plug x 8, IP67 Power Plug x 1, Cap with Tether x 8 (RoHS)
NS-208-IP67 CR Industrial 8-port unmanaged IP67 Ethernet switch
Includes IP67 RJ-45 Plug x 8, IP67 Power Plug x 1, Cap with Tether x 8 (RoHS)
MDR-60-48 CR 48V/1.25A, 60W Single Output Industrial DIN Rail Power Supply (RoHS)
DIN-KA52F-48 48 V/0.52 A, 25 W Power Supply with DIN-Rail Mounting
DR-120-48 48 V/2.5 A,120 W Power Supply with DIN-Rail Mounting

IP67 RJ-45 Plug
Cap with Tether
IP67 Power Plug
4SASO-0001
4SASO-0004
4SIOIK0000013
