CL-211/CL-212/CL-213
Remote PM2.5/CO/CO2/Temperature/Humidity/Dew Point Data Logger Module

~ NEW ~

Model: CL-211/CL-212/CL-213


  • PM2.5, CO, CO2, Temperature, Humidity and Dew Point Measurement
  • Non-dispersive Infrared (NDIR) CO2 Sensor
  • Up to 450,000 records with date and time stamps
  • Support DCON and Modbus RTU Protocols
  • Providing RS-485 Communication Interface
  • Relay Output for Alarm Device or IAQ Device Control

The CL-200 series of Data Logger devices can be used to record PM2.5, CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300 Utility from anywhere and at any time using the free Windows software.Support is provided for popular industrial protocols such as DCON and Modbus RTU. The DL-300 Data Logger can be connected via widely used RS-485 communication interfaces, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.

  • Transportation of Food or Pharmaceuticals
  • Food and Beverage Industry (HACCP)
  • Blood Stations and Pharmacies
  • Building and Energy Management
  • Warehouse Management
  • Museums, Archives and Galleries


Model CL-211 CL-212 CL-213
PM2.5 Measurement
Range 0 ~ 400 μg/m3
Resolution 1μg/m3
Response Time <= 1 min.
CO Measurement
Range 0 to 1000 ppm (Electrochemical) - 0 to 1000 ppm (Electrochemical)
Resolution 1 ppm - 1 ppm
Accuracy ±5% of measured value - ±5% of measured value
Response Time 30 seconds - 30 seconds
Warm-up Time 300 seconds - 300 seconds
CO2 Measurement
Range - 0 to 9999 ppm (NDIR)
Resolution - 1 ppm
Accuracy - ±40 ppm ±3% of measured value
Response Time - 120 seconds
Warm-up Time - 5 minutes
Temperature Measurement
Range -10 to +50°C
Resolution 0.1°C
Accuracy ±0.6°C
Relative Humidity Measurement
Range 0 to 100% RH
Resolution 0.1% RH
Accuracy ±5% RH
Dew Point
Range Calculated using temperature and relative humidity
Resolution 0.1°C
System
PM2.5/CO2/RH/T Alarm Yes
Real Time Clock Yes
Data Logger Yes, up to 450,000 records
Relay Output Form Ax1, SPST
30 VDC @ 16 A or 250 VAC @ 16 A
Interface RS-485
Electrical
Powered from Terminal Block +10 to +30 VDC
Power Consumption 1.2 W (Max.)
Mechanical
Installation Ceiling Mounting
Protection Class IP20
Dimensions (D x H) Ø 150 mm x 53 mm
Environment
Operating Temperature 0 to +50°C
Storage Temperature -30 to +75°C
Humidity 10 to 90% RH, Non-condensing

Model CL-211 CL-212 CL-213
System
PM2.5/CO/CO2/RH/T Alarm Yes
Real Time Clock Yes
Data Logger Yes, up to 450,000 records
Relay Output Form Ax1, SPST
30 VDC @ 16 A or 250 VAC @ 16 A
Interface RS-485
Electrical
Powered from Terminal Block +10 to +30 VDC
Power Consumption 1.0 W (Max.) 1.2 W (Max.) 1.5 W (Max.)
Mechanical
Installation Ceiling Mounting/Wall Mounting
Protection Class IP20
Dimensions (D x H) Ø 150 mm x 53 mm
Environment
Operating Temperature 0 to +50°C
Storage Temperature -30 to +75°C
Humidity 10 to 90% RH, Non-condensing

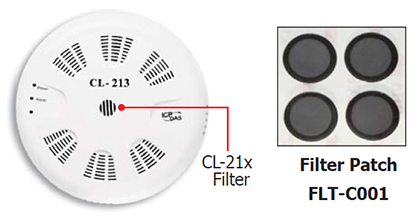

Replaceable Filter Patch:
CL-21x Series offers a replaceable fi lter patch on the back of the hood fi lter. This mechanism makes users to replace only the fi lter patch rather than uninstall all devices.


CL-211 CR Remote PM2.5/CO/Temperature/Humidity/Dew Point Data Logger Module (RoHS)
CL-212 CR Remote PM2.5/CO2/Temperature/Humidity/Dew Point Data Logger Module (RoHS)
CL-213 CR Remote PM2.5/CO/CO2/Temperature/Humidity/Dew Point Data Logger Module (RoHS)

EWB-C150 External Wall Box for CL-200 series
CA-RJ45-04 RJ45 Cable, Male-Female, 30cm (90º)
FLT-C001 Replaceable Filter Patch
