CL-210-E/CL-211-E/CL-212-E/CL-213-E
Remote PM2.5/CO/CO2/Temperature/Humidity/ Dew Point Data Logger Module


Model: CL-210-E/CL-211-E/CL-212-E/CL-213-E

  • Able to record PM2.5, CO, CO2, Temperature, Humidity and Dew Point Measurements
  • Non-dispersive Infrared (NDIR) CO2 Sensor
  • Up to 450,000 records with date and time stamps
  • Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
  • Includes RS-485/Ethernet Communication Interfaces
  • Relay Output for Alarm or IAQ Device Control

The CL-200 series of data logger devices can be used to record PM2.5, CO, CO2, temperature, humidity and dew point information, including the date and time stamps, and are able to store up to 450,000 downloadable records.
Real-time data can be accessed from the CL-200 data logger from anywhere and at any time using the free Windows software, the iOS App, or the Android App, as long as they are connected to the same local network as the data logger.
Support is provided for common industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200 data logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems.

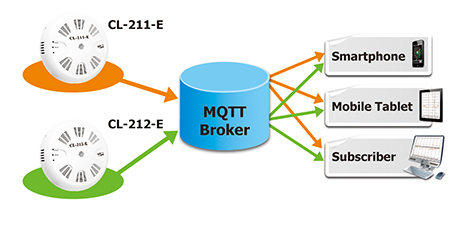

Supports the MQTT Protocol for IoT Applications

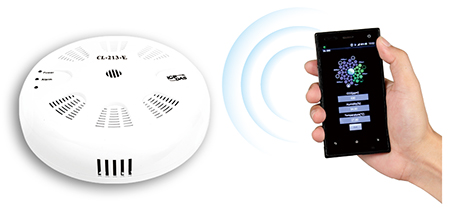

Multi-platform Remote Access Software
Real-time data from the CL-200 data logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the data logger

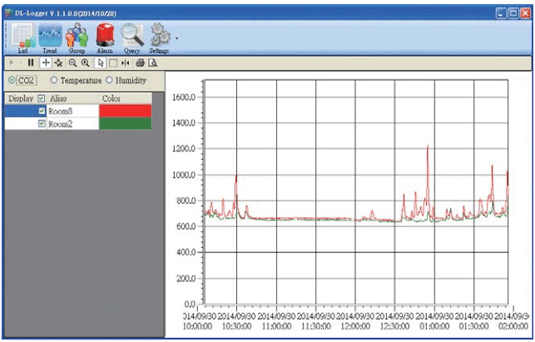

The DL-300 Utility is a powerful tool that is designed for confi guring the modules, monitoring real-time data, grouping DL-300 and CL-200 modules to view and manage the status of distribution groups, downloading log data, which can be exported to a CSV file that can then be imported into any industry-standard software or spreadsheet for analysis.


  • Transportation of Food or Pharmaceuticals
  • Food and Beverage Industry (HACCP)
  • Blood Stations and Pharmacies
  • Building and Energy Management
  • Warehouse Management
  • Museums, Archives and Galleries

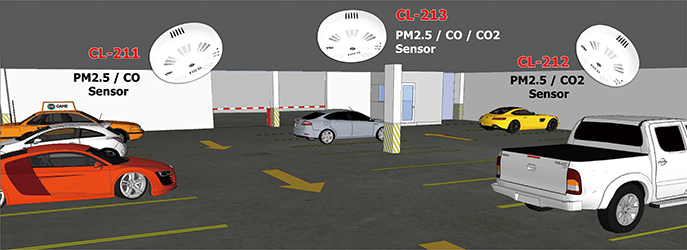

Indoor or Underground Parking Lot Automatic Monitoring Solution
The air quality automation system for indoor or underground parking lot can use the CL-200 series modules to monitor the health and safity information, such as PM2.5, CO, CO2, temperature, humiditym, dew point, and more...

Model CL-210-E CL-211-E CL-212-E CL-213-E
System
PM2.5 Alarm Yes
CO Alarm - Yes - Yes
CO2 Alarm - - Yes Yes
RH/Temperature Alarm Yes
Real Time Clock Yes
Data Logger Yes, up to 450,000 records
Relay Output Form A×1, SPST
30 VDC @ 16 A or 250 VAC @ 16 A
Interface RS-485/Ethernet
Electrical
Powered from Terminal Block +12 to +48 VDC
Power Consumption Non-PoE 2.5 W (Max.) 2.66 W (Max.) 2.9 W (Max.) 3.24 W (Max.)
PoE 2.65 W (Max.) 2.73 W (Max.) 3.22 W (Max.) 3.41 W (Max.)
Mechanical
Installation Ceiling Mounting/Wall Mounting
Protection Class IP20
Dimensions (D x H) Ø 150 mm x 53 mm
Environment
Operating Temperature 0 to +50°C
Storage Temperature -30 to +75°C
Humidity 10 to 90% RH, Non-condensing

Model CL-210-E CL-211-E CL-212-E CL-213-E
PM2.5 Measurement
Range 0 ~ 400 μg/m3
Resolution 1μg/m3
Response Time <= 1 min.
CO Measurement
Range - 0 to 1000 ppm (Electrochemical) - 0 to 1000 ppm
(Electrochemical)
Resolution - 1 ppm - 1 ppm
Accuracy - ±5% of measured value - ±5% of measured value
Response Time - 30 seconds - 30 seconds
Warm-up Time - 60 seconds - 60 seconds
CO2 Measurement
Range - 0 to 9999 ppm (NDIR)
Resolution - 1 ppm
Accuracy - ±40 ppm ±3% of measured value
Response Time - 120 seconds
Warm-up Time - 5 minutes
Temperature Measurement
Range -10 to +50°C
Resolution 0.1°C
Accuracy ±0.6°C
Relative Humidity Measurement
Range 0 to 100% RH, Non-condensing
Resolution 0.1% RH, Non-condensing
Accuracy ±5% RH, Non-condensing
Dew Point
Range Calculated using temperature and relative humidity
Resolution 0.1°C

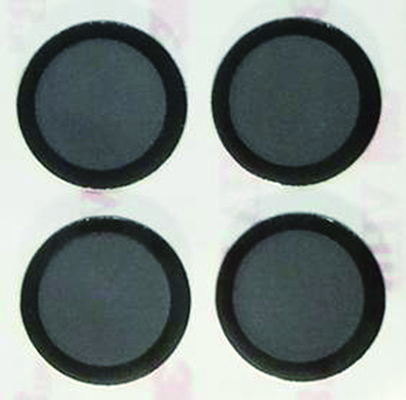

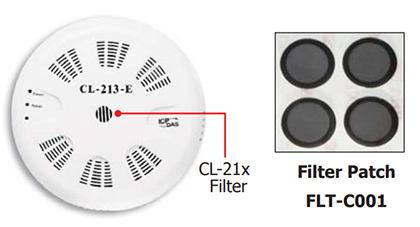

Replaceable Filter Patch:
CL-21x Series offers a replaceable fi lter patch on the back of the hood fi lter. This mechanism makes users to replace only the fi lter patch rather than uninstall all devices.

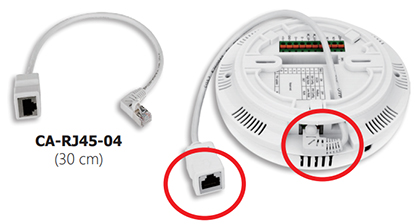

  CL-2xx-E + RJ45 Cable:
CL-2xx-E (Ethernet Type) are with optional angle-bent RJ45 cable to smoothly install the Ethernet plug in the hole of the ceiling-mounted.



CL-210-E CR ~ NEW ~ Remote PM2.5/Temperature/Humidity/Dew Point Data Logger Module (RoHS)
CL-211-E CR ~ NEW ~ Remote PM2.5/CO/Temperature/Humidity/Dew Point Data Logger Module (RoHS)
CL-212-E CR ~ NEW ~ Remote PM2.5/CO2/Temperature/Humidity/Dew Point Data Logger Module (RoHS)
CL-213-E CR ~ NEW ~ Remote PM2.5/CO/CO2/Temperature/Humidity/Dew Point Data Logger Module (RoHS)

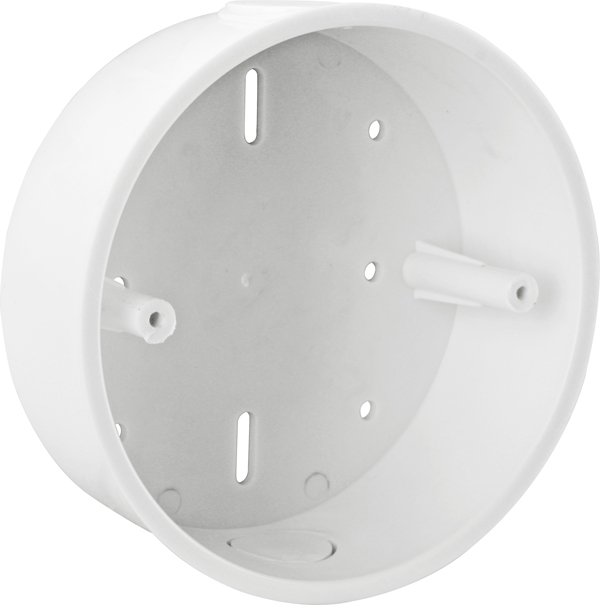

EWB-C150 External Wall Box for CL-200 series
CA-RJ45-04 RJ45 Cable, Male-Female, 30cm
