CL-201-E/CL-202-E/CL-203-E/CL-204-E/CL-205-E/
CL-206-E/CL-207-E/CL-208-E
Remote CO/CO2/HCHO/TVOC/Temperature/Humidity/Dew Point Data Logger Module |
|
| |
| |
 |
Model: CL-201-E/CL-202-E/CL-203-E/CL-204-E/CL-205-E/
CL-206-E/CL-207-E/CL-208-E |
|
|
 |
- Able to record CO, CO2, H2S, NH3, HCHO, TVOC, Temperature, Humidity and Dew Point Measurements
- Non-dispersive Infrared (NDIR) CO2 Sensor
- HCHO : Electrochemical Sensor
- VCO : Metal-Oxide Sensor
- Up to 450,000 records with date and time stamps
- Simple and Powerful Software Utility, iOS APP and Android App Included
- Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
- Includes RS-485/Ethernet Communication Interfaces
- Relay Output for Alarm or IAQ Device Control
- Ceiling Mounting or Wall Mounting
|
|
|
| |
 |
The CL-200 series of data logger devices can be used to record CO, CO2, NH3, H2S, HCHO, TVOC, temperature, humidity and dew point information, including the date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the CL-200 data logger from anywhere and at any time using the free Windows software, the Iso App, or the Android App, as long as they are connected to the same local network as the data logger. Support is provided for common industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200 data logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems. |
| |
|

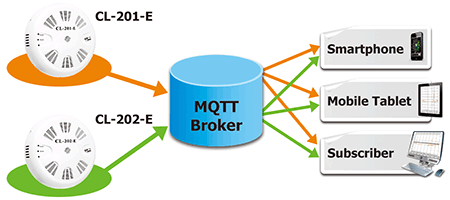

Supports the MQTT Protocol for IoT Applications
 |

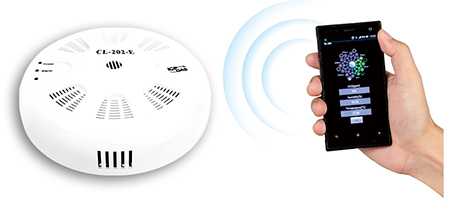

Multi-platform Remote Access Software
Real-time data from the CL-200 data logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS
or Android App, or via a regular web browser, as long as they are connected to the same local network as the data logger.  |
|
| |
 |
| |
|
|
The DL-300 Utility is a powerful tool that is designed for
configuring the modules, monitoring real-time data, grouping DL-300 and CL-200 modules to view and manage the status of distribution groups, downloading log data, which can be exported to a CSV file that can then be imported into any industry-standard software or spreadsheet for analysis. |
|
 |
|
| |
 |
- Transportation of Food or Pharmaceuticals
- Food and Beverage Industry (HACCP)
|
- Blood Stations and Pharmacies
- Building and Energy Management
|
- Warehouse Management
- Museums, Archives and Galleries
|
|
| |

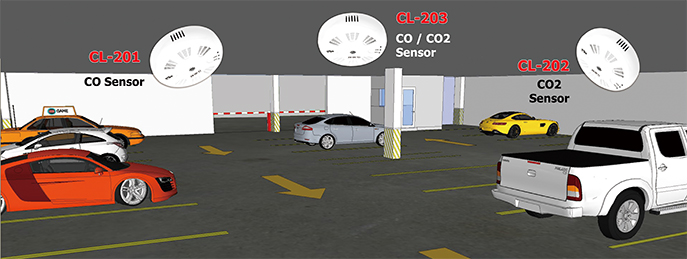

Indoor or Underground Parking Lot Automatic Monitoring Solution
The air quality automation system for indoor or underground parking lot can use the CL-200 series modules to monitor the health and
safi ty information, such as CO, CO2, temperature, humiditym, dew point, and more... |
 |
HCHO (Formaldehyde) / VOC Detector Automatic Solution
The HCHO/VOC detector provides an instantaneously warning of toxic formaldehyde, which can be found in a plywood factory, furniture factory and new interior remodelling house commonly. |
 |
| |
| |
 |
| Model |
CL-201-E |
CL-202-E |
CL-203-E |
CL-204-E |
CL-205-E |
CL-206-E |
CL-207-E |
CL-208-E |
| System |
| CO Alarm |
Yes |
- |
Yes |
- |
| CO2 Alarm |
- |
Yes |
Yes |
- |
| HCHO Alarm |
- |
Yes |
- |
Yes |
- |
| TVOC Alarm |
- |
Yes |
- |
Yes |
| NH3 Alarm |
- |
Yes |
- |
| H2S Alarm |
- |
Yes |
- |
| RH/Temperature Alarm |
Yes |
| Real Time Clock |
Yes |
| Data Logger |
Yes, up to 450,000 records |
| Relay Output |
Form A×1, SPST
30 VDC @ 16 A or 250 VAC @ 16 A |
| Interface |
RS-485/Ethernet |
| Electrical |
| Powered from Terminal Block |
+12 to +48 VDC |
| Power Consumption |
Non-PoE |
1.5 W (Max.) |
1.5 W (Max.) |
1.6 W (Max.) |
1.9 W (Max.) |
1.6 W (Max.) |
1.6 W (Max.) |
1.9 W (Max.) |
1.9 W (Max.) |
| PoE |
1.6 W (Max.) |
1.6 W (Max.) |
1.7 W (Max.) |
2.0 W (Max.) |
1.7 W (Max.) |
1.7 W (Max.) |
2.0 W (Max.) |
2.0 W (Max.) |
| Mechanical |
| Installation |
Ceiling Mounting/Wall Mounting |
| Protection Class |
IP20 |
| Dimensions (D x H) |
Ø 150 mm x 53 mm |
| Environment |
| Operating Temperature |
0 to +50°C |
| Storage Temperature |
-1 ppm |
| Humidity |
10 to 90% RH, Non-condensing |
|
| |
 |
| Model |
CL-201-E |
CL-202-E |
CL-203-E |
CL-204-E |
CL-205-E |
CL-206-E |
CL-207-E |
CL-208-E |
| CO Measurement |
| Range |
0 to 1000 ppm
(Electrochemical) |
- |
0 to 1000 ppm
(Electrochemical) |
- |
| Resolution |
1 ppm |
- |
1 ppm |
- |
| Accuracy |
±5% of
measured value |
- |
±5% of measured value |
- |
| Response Time |
30 seconds |
- |
30 seconds |
- |
| Warm-up Time |
300 seconds |
- |
300 seconds |
- |
| CO2 Measurement |
| Range |
- |
0 to 9999 ppm (NDIR) |
- |
| Resolution |
- |
1 ppm |
- |
| Accuracy |
- |
±40 ppm ±3% of measured value |
- |
| Response Time |
- |
120 seconds |
- |
| Warm-up Time |
- |
5 minutes |
- |
| NH3 Measurement |
| Range |
- |
0 to 100 ppm
(Electrochemical) |
- |
| Resolution |
- |
1 ppm |
- |
| Accuracy |
- |
±5% of
measured value |
- |
| Response Time |
- |
< 120 Sec |
- |
| Warm-up Time |
|
180 Sec |
|
| H2S Measurement |
| Range |
- |
to 100 ppm
(Electrochemical) |
- |
| Resolution |
- |
1 ppm |
- |
| Accuracy |
- |
±5% of
measured value |
- |
| Response Time |
- |
< 120 Sec |
- |
| Warm-up Time |
- |
180 Sec |
- |
| HCHO Measurement |
| Range |
- |
0 ppb to 2000 ppb
(Electrochemical) |
- |
0 ppb to 2000 ppb
(Electrochemical) |
- |
| Resolution |
- |
1 ppb |
- |
1 ppb |
- |
| Accuracy |
- |
- |
- |
- |
- |
| Response Time |
- |
≤60 seconds |
- |
≤60 seconds |
- |
| Warm-up Time |
- |
180 seconds |
- |
180 seconds |
- |
| TVOC Measurement |
| Range |
- |
- |
- |
0 ppb to 60000 ppb (MEMS Metal Oxide) |
- |
0 ppb to 60000 ppb
(MEMS Metal Oxide) |
| Resolution |
- |
- |
- |
1 ppb |
- |
1 ppb |
| Accuracy |
- |
- |
- |
±15% |
- |
±15% |
| Response Time |
- |
- |
- |
60 seconds |
- |
60 seconds |
| Warm-up Time |
- |
- |
- |
180 seconds |
- |
180 seconds |
| Temperature Measurement |
| Range |
-10 to +50°C |
| Resolution |
0.1°C |
| Accuracy |
±0.6°C |
| Relative Humidity Measurement |
| Range |
0 to 100% RH, Non-condensing |
| Resolution |
0.1% RH, Non-condensing |
| Accuracy |
±5% RH, Non-condensing |
| Dew Point |
| Range |
Calculated using temperature and relative humidity |
| Resolution |
0.1°C |
|
| |
 |
| |
|
|
CL-2xx-E + RJ45 Cable:
CL-2xx-E (Ethernet Type) are with optional angle-bent RJ45 cable to smoothly install the Ethernet plug in the hole of the ceiling-mounted.
|
|
|
|
| |
 |
| CL-201-E CR ~ NEW ~ |
Remote CO/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 Interfaces and PoE (RoHS) |
| CL-202-E CR ~ NEW ~ |
Remote CO2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 Interfaces and PoE (RoHS) |
| CL-203-E CR ~ NEW ~ |
Remote CO/CO2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 Interfaces and PoE (RoHS) |
| CL-204-E CR ~ Available soon ~ |
Remote HCHO/TVOC/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 Interfaces and PoE (RoHS) |
| CL-205-E CR ~ Available soon ~ |
Remote NH3/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 Interfaces and PoE (RoHS) |
| CL-206-E CR ~ Available soon ~ |
Remote H2S /Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 Interfaces and PoE (RoHS) |
| CL-207-E CR ~ Available soon ~ |
Remote HCHO/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 Interfaces and PoE (RoHS) |
| CL-208-E CR ~ Available soon ~ |
Remote TVOC/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 Interfaces and PoE (RoHS) |
|
| |
 |
| EWB-C150 |
External Wall Box for CL-200 series |
| CA-RJ45-04 |
RJ45 Cable, Male-Female, 30cm (90º) |
|
| |
|
|
| |
|
|
