RM-22.22 Series
2 Polel, 20 A relay for direct 35 mm rail (EN 50022) mounting



Model: RM-22.22 Series


  • Double phase switch 2 NO (DPST-NO)
  • 35 mm rail (EN 50022) mount

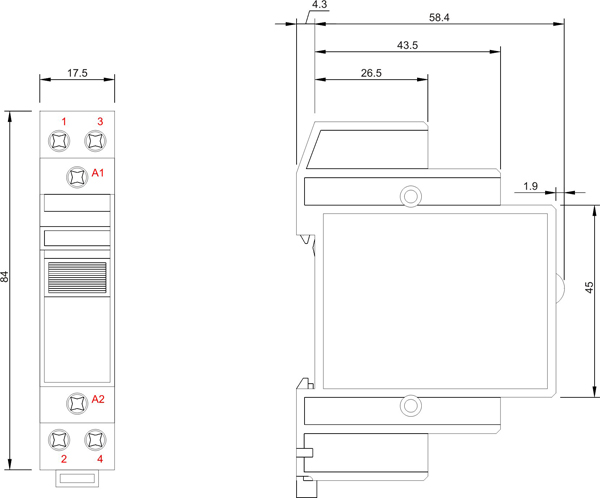

  • 17.4mm wide
  • Test button

Model
RM-20.22(Screwless)
Contact Specification
Contact configuration
2 NO (DPST-NO)
Rated current/Maximum peak current A
20/30
Rated voltage/Maximum switching voltage V
250/400
Rated load in AC1 VA
5000
Rated load in AC15 (230V AC) VA
1000
Single phase motor rating (230 V AC) kW
-
Breaking capacity DC1:30/110/220 V A
20/0.3/0.12
Minimum switching load mW(V / mA)
1000(10/10)
Standard contact material
AgSnO2
Coil Specification
Nominal voltage (UN) V DC
24
Rated DC power DC
1.25
Operating range
DC
21.6~26.4 VDC
Technical Data
Mechanical life cycles
500 · 103
Electrical life at rated load in AC1 cycles
50 · 103
Operate/release time ms
15/8
Maximum impulse duration
continuous
Insulation between coil and contacts (1.2/50 μs) kV
4
Ambient temperature range °C
-40...+40
Protection category
IP 20
Approvals (according to type)

Technical data
Contact specifications
Nominal rate lamps
incandescent (230V) W
1000
compensated fluorescent (230V) W
360
Insulation
Dielectric strength
between supply and contacts V AC
3500
between open contacts V AC
2000
between adjacent contacts V AC
2000
Other data
Bounce time: NO / NC ms
5/10
Power lost to the environment
without contact current W
1.2
with rated current W
3.2(22.21,22.23)
5.2(22.22,22.24)
Screw torque Nm
0.8
0.8
Max. wire size

mm2
AWG
Coil terminals
Contact terminals
solid cable
stranded cable
solid cable
stranded cable
1x4/2x2.5
1x2.5/2x2.5
1x6/2x6
1x6/2x4
1x12/2x14
1x14/2x14
1x10/2x10
1x102x12
If the coil is operated for a prolonged period of time, adaquate ventilation of the relays must be provided - suggested gap of 9 mm between adjacent relays.

Coil specifications
DC version data
Nominal voltage Coil code Operating range Resistance Consumption I at UN
24 9.024 21.6 26.4 460 52.2

RM-22.22 2 Polel, 20 A relay for direct 35 mm rail (EN 50022) mounting
