FR-2057TW
16-channel Sink type Isolated High Current Output Module



Model: FR-2057TW

  • Built-in Wire-saving FRnet DI/DO control
  • High-speed transmission reliability
  • Simple synchronization mechanism
  • No software overhead on protocol processing
  • Supporting broadcasting (1:n data transmission)
  • Duplicating output easily
  • Fixed I/O scan-time and I/O synchronization
  • DIN-Rail mountable

The FR-2053TA has 16-channel isolated Sink/Source input, while the FR-2057TW has 16-channel isolated sink output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053TA/2057TW; refer to literature related to I-7188EF, I-8172, FRB-100/200/200U.

Digital Output
Output Channel 16
Output Type Sink, Open-Collector (NPN)
Load Voltage 30 VDC, Max
Load Current 250mA, Max
Isolation Voltage 3750 Vrms
Interface
2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may be changed
Transfer distance Max. 400m for speed 250Kbps
Max. 100m for speed 1Mbps(Default)
LED Indicators Power, Communication Run, Communication Error, Terminal resistor,Digital output

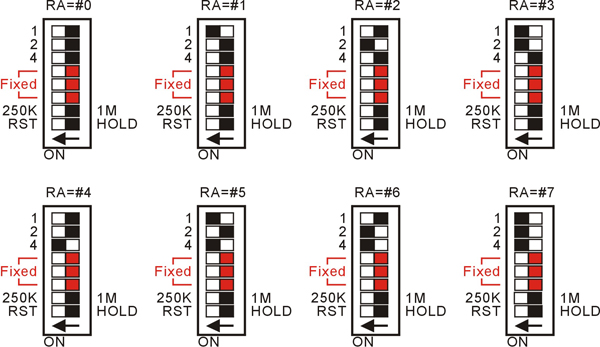

Transfer speed 250Kbps and 1Mbps(Default)
Cyclic scan time 2.88ms for speed 250Kbps
0.72ms for speed 1Mbps(Default)
Connection Removable 20-pin Terminal Block
Power
Input Voltage Range +10 ~ +30 VDC (Non-isolation)
Power Consumption 2.4 W Max.
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connector 5-Pin Removable Terminal Block
Mechanical
Casing Plastic (Flammability UL 94V-0)
Flammability UL 94V-0 materials
Dimensions 32.5mm x 110mm x 102 mm (W x H x D)
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +85 °C
Ambient Relative Humidity 10 to 90% RH, non-condensing

FR-2057TW 16-channel Sink type Isolated High Current Output Module
